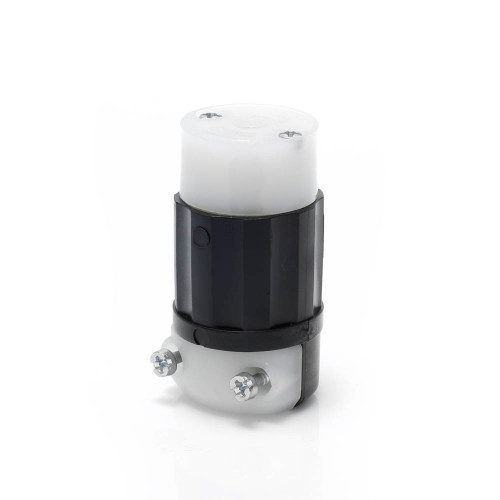

Leviton ML3-AC Mini Locking Connector, 15 Amp, 125/250 Volt, Industrial Grade, Black & White
Current Interrupting: Certified for current interrupting at full rated current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Non-Grounding
Pole: 3
Temperature Rise: Max 30C at 250 cycles OL at 200 pct rated current
Voltage: 125/250 VAC
Wire: 3
Flammability: Rated HB or better UL94
Operating Temperature: -40¡C to 60¡C
Back Cover: Thermoplastic
Blades/Contacts: Solid Brass
Body Material: Impact Modified Nylon
Clamp Insert: Nylon
Color: Black-White
Cord-Clamp: Nylon
Terminal Screws: Brass
Current Interrupting: Certified for current interrupting at full rated current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Non-Grounding
Pole: 3
Temperature Rise: Max 30C at 250 cycles OL at 200 pct rated current
Voltage: 125/250 VAC
Wire: 3
Flammability: Rated HB or better UL94
Operating Temperature: -40¡C to 60¡C
Back Cover: Thermoplastic
Blades/Contacts: Solid Brass
Body Material: Impact Modified Nylon
Clamp Insert: Nylon
Color: Black-White
Cord-Clamp: Nylon
Terminal Screws: Brass
Mini Locking Connector, 15 Amp, 125/250 Volt, Industrial Grade, Black & White
15 Amp, 125/250 Volt, NEMA ML3R, 3P, 3W, Locking Connector,Industrial Grade, Non-Grounding, MiniLock Angle - BLACK-WHITE
Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contactsreduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Industry exclusive limited lifetime warranty
- Made proudly in the USA
Electrical Specifications
Amperage: 15 ACurrent Interrupting: Certified for current interrupting at full rated current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Non-Grounding
Pole: 3
Temperature Rise: Max 30C at 250 cycles OL at 200 pct rated current
Voltage: 125/250 VAC
Wire: 3
Environmental Specifications
Environment: DryFlammability: Rated HB or better UL94
Operating Temperature: -40¡C to 60¡C
Material Specifications
Assembly Screws: Steel, Zinc PlatedBack Cover: Thermoplastic
Blades/Contacts: Solid Brass
Body Material: Impact Modified Nylon
Clamp Insert: Nylon
Color: Black-White
Cord-Clamp: Nylon
Terminal Screws: Brass
Wire Module: Nylon
Product ID: Ratings and NEMA I.D. permanently marked on device
Screw Terminal Torque: 10-12 in-lbs
Terminal Accom.: 18-14 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Wire Gauge: 18-14 AWG
Color: Black-White
Device Type: Locking Connector
Feature: Angled
CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL Fed Spec WC-596: File E13393
Warranty: Limited Lifetime Warranty Warranty
Mechanical Specifications
Cord Range: .218 - .430Product ID: Ratings and NEMA I.D. permanently marked on device
Screw Terminal Torque: 10-12 in-lbs
Terminal Accom.: 18-14 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Wire Gauge: 18-14 AWG
Product Features
Brand: Black and WhiteColor: Black-White
Device Type: Locking Connector
Feature: Angled
Standards and Certifications
ANSI: C-73CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL Fed Spec WC-596: File E13393
Warranty: Limited Lifetime Warranty Warranty
