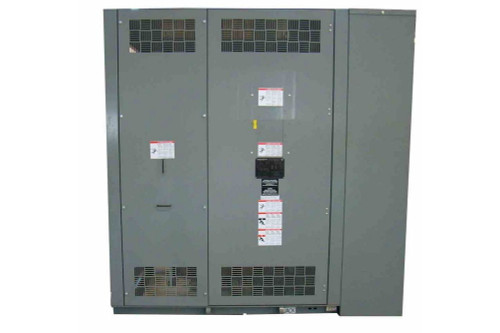

Larson Electronics 1500 kVA Transformer - 4160Y/2402 Wye-N Primary Voltage - 480V Delta Secondary - NEMA 3R

The MT-PMD-3P-4160Y.2402-1500KVA-480D-N3R 4160Y/2402 3 Phase Energy Efficient Transformer from Larson Electronics is powerful, reliable and designed with the environment in mind. Suitable for both indoor and outdoor applications, the MT-PMD-3P-4160Y.2402-1500KVA-480D-N3R provides increased reliablity and protection against critical equipment failures. The lower operating costs, lower heat emissions and lower cost of ownership make this transformer ideal for a wide range of applications and businesses. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* Transformer Features: With a transformer rating of 1500kVA, the MT-PMD-3P-4160Y.2402-1500KVA-480D-N3R transformer is a three phase unit with a primary voltage of 4160Y/2402 Wye-N. It also provides a secondary voltage of 480V Delta. Featuring robust construction, this unit`s cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology. This unit boasts a low cost of ownership and is highly energy efficient. Lower heat emissions mean less cooling is needed as well. The Standard NEMA Type 3R enclosure makes the unit suitable indoor applications and it can be pad mounted. The unit also features Class H 220¡C insulation with a 150¡C temperature rise and is rated IP24. Benefits: The MT-PMD-3P-4160Y.2402-1500KVA-480D-N3R general purpose transformer offers many benefits to the consumer. Precision cut aluminum transformer winding material help to improve performance. The close tolerances used during manufacturing also eliminates burrs which hinder performance. Each core is specially coated to prevent the ingress of moisture and are electrically balanced to minimize axial forces during short circuit situations. This transformer provides owners with significant energy savings as well as offering environmental benefits. Higher efficiency not only extends the life of the transformer, but also turn into cost savings for owners in the form of lower energy bills and decreased cost of ownership. Applications: General purposes. Larson Electronics is a manufacturer and as such can build stationary and portable transformer systems to your specifications. Although we carry several models of power distribution transformer systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 888-325-4448 [email protected] to discuss your specific requirements. Specifications / Additional Information MT-PMD-3P-4160Y.2402-1500KVA-480D-N3R Transformer Ratings Phase: Three Phase Listed for United States and Canada Frequency: 60Hz Dry Type kVA: 1500 IP24 Rated Primary Voltage: 4160Y/2402 Wye-N Class H Primary Connection: Wye-N Rear Access Primary BIL: 30kV Built to ANSI/IEEE Standards Primary Voltage Taps: FCAN: 2 @ 2.5%; FCBN: 2 @ 2.5% Secondary Voltage: 480V Delta Secondary Connection: Delta Secondary BIL: 10kV Winding Material: Aluminum Electrostatic Shield: No Insulation: 220¡C Temperature Rise: 150¡C Impedance (Std): - Ambient Temp Rating: 40¡C Elevation: 1000M LV Terminations: Bus-to-End with Flexible Connectors HV Terminations: Stubs Up Cable Connected Enclosure Type: Standard NEMA Type 3R Ventilated Special Orders- Requirements Finish: ASA61 Grey Powder Coat Contact us for special requirements Dimensions: - Toll Free: 888-325-4448 Weight: - Mounting: Pad E-mail: [email protected] -Scroll Down to Purchase-
