APPLICATION:

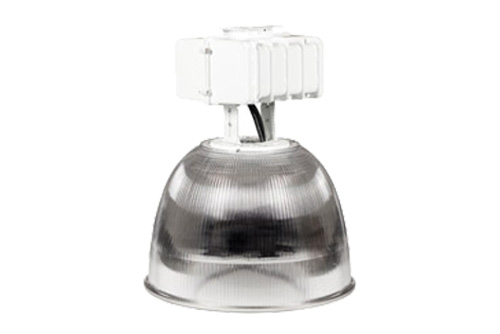

The BL series prismatic reflector is available in 16Ó and 22Ó diameters. Ideal for location of retail stores, warehouses, gymnasiums, factories, foundries, machine shops, grocery stores and malls.
FEATURES:
- Heavy duty die-cast aluminum ballast housing and prismatic refractor.
- Die-cast aluminum ballast housing with a white polyester powder paint finish.
- Easy to change out with other reflectors replace or remove and bottom lens.
MOUNTING:
- Steel hanger comes as standard.
- Comes with steel hook or die cast hook for easy mounting (WHK).
- Pendant splice box threaded for 3/4Ó conduit or hook mount.
REFLECTOR & BOTTOM LENS:
- High impact, UV-stabilized prismatic polycarbonate reflector and lens.
- Available with conical bottom lens, drop bottom lens and heat and impact resistant tempered clear glass flat lens in options.
- BL16: 16Ó dia. prismatic reflector.
- BL22: 22Ó dia. prismatic reflector.
LAMP:
- HPS Lamps have mogul base (E39) heavy duty porcelain socket with screw shell and center contact.
- MH Lamps have protected mogul base (E39) heavy duty porcelain socket with screw shell and center contact.
- Lamp included.
ELECTRICAL:
- MH ballasts are standard high power factor ballast with ambient operating temperature of -20¡F (-30¡C) to 108¡F (90¡C), 180¡C insulation system.
- HPS ballasts are standard high power factor ballast with ambient operating temperature of -40¡F (-40¡C), 180¡C insulation system.
LISTING:
- UL/CUL listed standard.
- IP20 rated.
- Suitable for damp locations.
- ARRA compliant. (optional)
