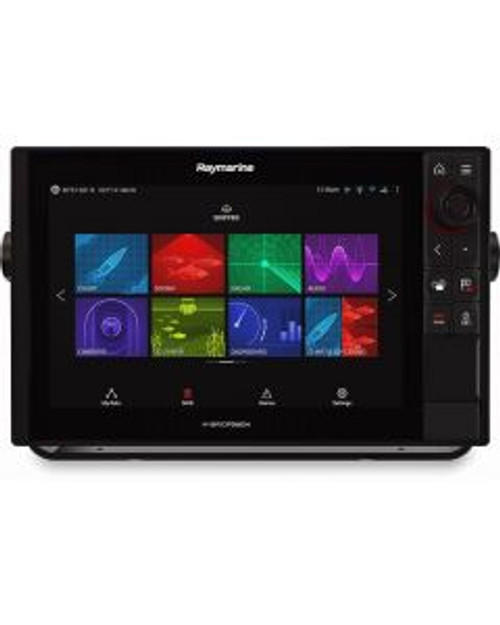

Raymarine Axiom Pro 16RVX MFD No Transducer No Chart RAYE70373
What's in the Box:
Raymarine Axiom Pro 16RVX 15.6" MFD With RealVision 3D, 1kw CHIRP sonar No Chart
Model: E70373- RealVision 3D, 1kw CHIRP sonar
- NMEA2000 & NMEA0183
- Sonar Scroll Back
- HybridTouch™
- Quad Core Processor
- Optical Bonding Technology & IPS Displays
- IP & Analog Video
- Clear Cruise™
- Quantum CHIRP, HD & SHD
- NMEA2000 & NMEA0183
| Display Size | 15.6" IPS Optically Bonded LCD |
| Display Resolution | 1920 x 1080 FHD |
| Display Type | Multitouch |
| Brightness | 1,200 nits |
| Viewing Angle | Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right) |
| Mounting | Top, Front, and optional RAM ball mount adapter |
| Waterproof Rating | IPX6 / IPX7 |
| Operating Temp | minus 13deg F to 131deg F (-25deg C to +55deg C) |
| Storage Temp | minus 22deg F to 158deg F (-30deg C to +70deg C) |
| Sensors | |
| Sonar Type - Built-in | RealVision 3D, 1kw CHIRP sonar |
| Sonar Connections | 25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable. |
| Sonar Depth | CHIRP Sonar = 900 feet (974 m) DownVision™ = 600 feet (183 m) |
| External Sonar | Yes - CP100, CP200, CP370, CP470, CP570 via RayNet |
| Radar | Yes - Quantum, Digital, HD Color and Super HD Color Radars |
| AIS | Yes - N2K compatible |
| GNSS / GPS | Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288) |
| Autopilot Control | Yes - Evolution Autopilot |
| Thermal Night Vision | Yes - IP or Analogue |
| Video / Camera | 1 x Analogue input (BNC) Up to 10 IP Cameras |
| Weather | GRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only |
| Audio | N2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update] |
| Digital Switching | Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update] |
| Remote Control | RMK-10 (A80438) & RCU-3 (E62351) |
| Networking | |
| Ethernet | 2 x 10/100/1000 Mbits/ Network (RayNet) |
| NMEA0183 | 1 Transmit / 2 Receive |
| NMEA2000 | 1 x NMEA2000 port (DeviceNet microC) |
| SeaTalkNG | Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box) |
| USB | 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) |
| Wi-Fi | WiFi - 802.11 a / b / g / n |
| BlueTooth | Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update] |
| Navigation | |
| Cartography | Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update] |
| Waypoint/Routes/Tracks (Wpts/Rts/Trk) | 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts |
| MEMORY | |
| Internal | 16GB Solid State |
| 16GB Solid State | 2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) |
| Input Voltage | 12V and 24V DC (8 V to 32 DC) |
| Input Draw | ~45W |
| Dimensions | 17.8" x 10.2" x2.72" (452 x 258 x 69 mm) |
What's in the Box:
- Axiom Pro 16RVX
- Trim Kit
- Suncover
- Trunnion Kit
- PWR/VIDEO/NMEA0183 CBL, STRT 1.5M
- Mounting Hardware
- Mounting Template
- Quick Start Guide
- Warranty Card
- Raymarine window decal
