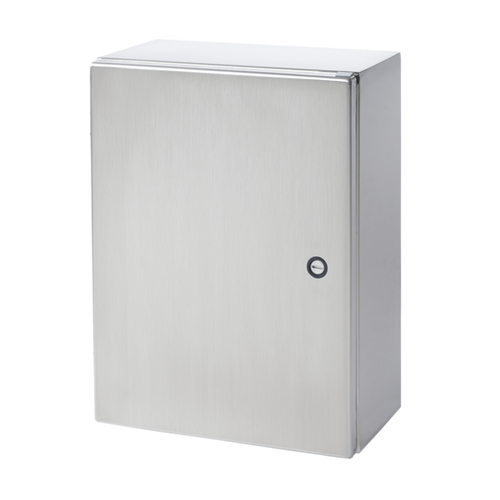

nVent Hoffman CSD30166SS Concept Wallmount 1/4-Turn Latch Type 4X, 30x16x6, Brushed, Stainless 304
Minimum-width body flange provides maximum body opening External formed 90-degree body flange Panel mounting studs fit optional Concept panels and other accessories Mounting holes in back of body for direct mounting or for optional external mounting brackets Type 316 stainless steel hidden hinges promote clean aesthetic appearance Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins Provision on door (except when B = 12 inch (305mm)) for thermoplastic data pocket Provision on door (except when B = 12 inch (305mm)) for optional doorstop kit Quarter-turn latches furnished with flush slotted insert Seamless foam-in-place gasket Self-grounding latch system with double seal Bonding provision on door; grounding stud on body Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wall-mounting hole
UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997
