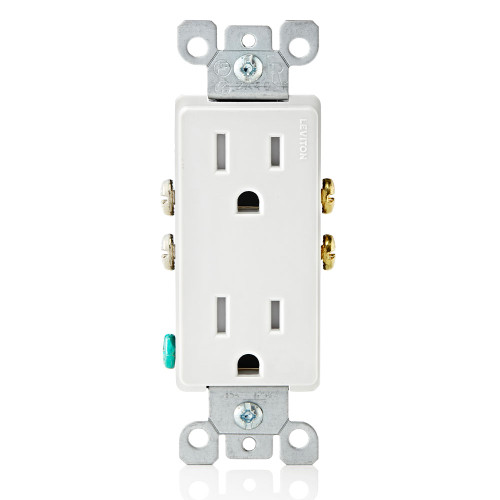

15 Amp Decora Weather & Tamper-Resistant Duplex Outlet

15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Weather and Tamper-Resistant, Decora, Duplex Receptacle/Outlet, Straight Blade, Grounding, Quickwire Push-In & Side, Standards and Certifications: UL/CSA, Warranty: 2 Year Limited, NEC compliant Ð White

WEATHER-RESISTANT Ð UV stabilized thermoplastic construction and extra corrosion protection to withstand the rigors of exposure to the elements
SAFE Ð Tamper-Resistant shutters protects from foreign objects being inserted into receptacle to ensure personal safety
EASY Ð Quickwire push-in and side wiring for easy installation
OUTDOOR USE Ð Must be installed in proper weatherproof enclosure with approved caulk and gaskets

UV stabilized thermoplastic construction and extra corrosion protection to withstand exposure to the elements
QuickWireª push-in and side wiring for easy installation
Terminal screws accept up to #12 AWG copper or copper-clad wire
QuickWire push-in terminals accept #14 AWG solid copper wire only
Shallow depth for maximum wiring room
Heavy-gauge zinc-plated steel mounting strap
Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
WR symbol on front of device and TR symbol on strap make it easy to identify and assures they meet the latest NEC requirements
Ultrasonic welding, heavy-duty construction offers long, trouble-free service life
Limited 2-year warranty
Ideal solution for both outdoor residential and commercial areas, including patios, decks and near pools and hot tubs
For outdoor use with LevitonÕs code compliant weatherproof covers
CAUTION: To clean use a damp cloth with mild soap. DO NOT use disinfecting products, including foggers, sprays, or other types of atomized cleaning agents

Product Features

Amperage: 15 A
Color: White
Device Type: Decora Receptacle
Feature: Weather and Tamper-Resistant
Type: Decora Duplex Receptacle
Weather Resistant: Yes
Wire: 3

Electrical Specifications

Amperage: 15 A
Grounding: Grounding
Pole: 2

Wire: 3

Mechanical Specifications

Termination: Quickwire Push-In & Side
Torque Range: 14 - 18 in.-lbs

Standards and Certifications

CSA: C22.2 No. 42: File 152105; Class 6233-01
NEMA: 5-15R
NOM: NOM Certified
UL 498: File E13399

Warranty

Warranty: 2-Year Limited
