Leviton PTC2X-E Poke-Through Cover, Black
Operating Temperature: -40¡C to 70¡C
Device Type: Cover
Gasket: Pre-installed on Cover
Operating Temperature: -40¡C to 70¡C
Device Type: Cover
Gasket: Pre-installed on Cover
Poke-Through Cover, Black

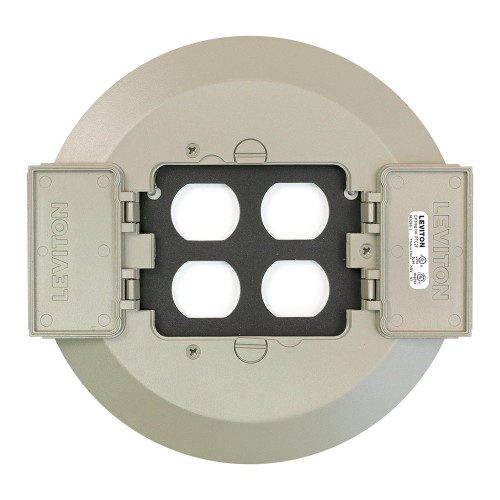

Traditional Floor Cover For Use With Leviton 5" Poke Through Floor Box (PT500) Only; Accommodates All Standard Duplex Receptacles. The Flip Lids Are A Double-Hinge Design That Can Open 180 Degrees And Lay Flat; Also Includes Metal Subplate And Pre-Assembled Gasket And Mounting Screws, And Cover Mounting Screws, Black
- Only three cover screws allow for easy installations and removals
- Accommodates any standard Duplex receptacle
- ADA-Complaint
- Available in nickel, brass, black or gray powder coat
*Poke-Through covers are sold separately from the PT500 system
*Poke-Through covers come with low voltage divider
Environmental Specifications
Duration Of Fire Protection: Certified for Fire Resistance in 1, 1-1/2 & 2hr fire rated concrete floorsOperating Temperature: -40¡C to 70¡C
Material Specifications
Cover Material: AluminumMechanical Specifications
Dimensions: 8.38Ó Diameter X 0.36 HighProduct Features
Color: BlackDevice Type: Cover
Gasket: Pre-installed on Cover
Ground Plate Included: Yes, with pre-installed gasket
Openings: Flip Lid: Doors open 180¡
Receptacle Compatibility: Any 2 standard receptacles and QuickPort Inserts
Type: Poke-Through
Certification/Listing: cULus
UL File No.: E92327, R40253
Openings: Flip Lid: Doors open 180¡
Receptacle Compatibility: Any 2 standard receptacles and QuickPort Inserts
Type: Poke-Through
Standards & Certifications
Applicable Standards: UL514A, UL263, CSA C22.2 No. 18.1Certification/Listing: cULus
UL File No.: E92327, R40253
Warranty
Warranty: 2-Year LimitedEnvironmental Specifications
Duration Of Fire Protection: Certified for Fire Resistance in 1, 1-1/2 & 2hr fire rated concrete floorsOperating Temperature: -40¡C to 70¡C
Material Specifications
Cover Material: AluminumMechanical Specifications
Dimensions: 8.38Ó Diameter X 0.36 HighProduct Features
Color: BlackDevice Type: Cover
Gasket: Pre-installed on Cover
Ground Plate Included: Yes, with pre-installed gasket
Openings: Flip Lid: Doors open 180¡
Receptacle Compatibility: Any 2 standard receptacles and QuickPort Inserts
Type: Poke-Through
Certification/Listing: cULus
UL File No.: E92327, R40253
Openings: Flip Lid: Doors open 180¡
Receptacle Compatibility: Any 2 standard receptacles and QuickPort Inserts
Type: Poke-Through
Standards & Certifications
Applicable Standards: UL514A, UL263, CSA C22.2 No. 18.1Certification/Listing: cULus
UL File No.: E92327, R40253
Warranty
Warranty: 2-Year Limited
