Leviton PT500 2-Gang, 5-Inch Poke-Through Device
Operating Temperature: -40¡C to 70¡C
Mounting Flange: Aluminium
Plate Material: Steel
Conduit Selection: 1 1/2Ó EMT Conduit for Data
Cubic Inch Capacity: 23.7cu. in.
EMT Pipe Size: 12"
Operating Temperature: -40¡C to 70¡C
Mounting Flange: Aluminium
Plate Material: Steel
Conduit Selection: 1 1/2Ó EMT Conduit for Data
Cubic Inch Capacity: 23.7cu. in.
EMT Pipe Size: 12"
2-Gang, 5-Inch Poke-Through Device
5" Diameter Poke-Through Device With Protective Cover. 2-Body Design, Adjustable Anchors, And Standard NPS Threaded Openings.
- Ease of Installation: Two-piece construction allows the device to self-level up to 4 degrees
- Superior Performance: Adjustable hardened steel anchoring clips securely lock unit inside a cored hole, while allowing for easy removals for inspections, adjustments, repairs, etc.
- Maximum Compatibility: Accommodates standard or Decoraª single or duplex receptacles, as well as Lev-Lok and QuickPort¨ inserts. Multiple low voltage divider slots accommodate different receptacle sizes
*Protective cover included

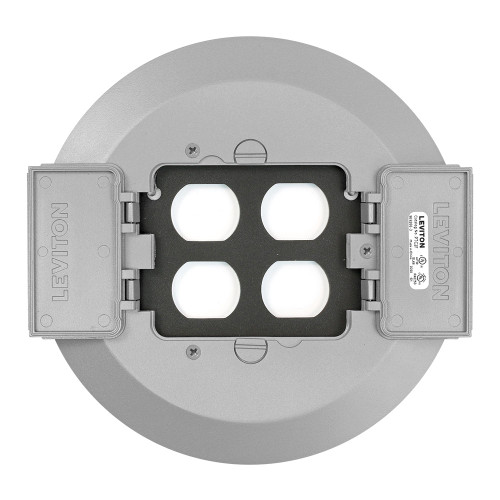

*Poke-Through covers are sold separately from the PT500 system; All covers come with low voltage divider (except pre-wired versions)
Environmental Specifications
Duration Of Fire Protection: Certified for Fire Resistance in 1, 1-1/2 & 2hr fire rated concrete floorsOperating Temperature: -40¡C to 70¡C
Material Specifications
Feature: Intumescent Block, Insulation, EMT Pipe, Data & Conduit ConnectorsMounting Flange: Aluminium
Plate Material: Steel
Mechanical Specifications
Conduit Feeds: Power Feed 3/4Ó EMT Conduit, Data Feed 1 1/2Ó EMT Conduit ConnectorConduit Selection: 1 1/2Ó EMT Conduit for Data
Cubic Inch Capacity: 23.7cu. in.
EMT Pipe Size: 12"
Poke-Through Hole: 5Ó to 5 1/4Ó Hole
Type: Poke-Through
Certification/Listing: cULus
UL File No.: E92327, R40253
Product Features
Device Type: Poke-Through Floor Box SystemType: Poke-Through
Standards & Certifications
Applicable Standards: UL514A, UL263, CSA C22.2 No. 18.1, NOM ANCECertification/Listing: cULus
UL File No.: E92327, R40253
Warranty
Warranty: 2-Year LimitedEnvironmental Specifications
Duration Of Fire Protection: Certified for Fire Resistance in 1, 1-1/2 & 2hr fire rated concrete floorsOperating Temperature: -40¡C to 70¡C
Material Specifications
Feature: Intumescent Block, Insulation, EMT Pipe, Data & Conduit ConnectorsMounting Flange: Aluminium
Plate Material: Steel
Mechanical Specifications
Conduit Feeds: Power Feed 3/4Ó EMT Conduit, Data Feed 1 1/2Ó EMT Conduit ConnectorConduit Selection: 1 1/2Ó EMT Conduit for Data
Cubic Inch Capacity: 23.7cu. in.
EMT Pipe Size: 12"
Poke-Through Hole: 5Ó to 5 1/4Ó Hole
Type: Poke-Through
Certification/Listing: cULus
UL File No.: E92327, R40253
Product Features
Device Type: Poke-Through Floor Box SystemType: Poke-Through
Standards & Certifications
Applicable Standards: UL514A, UL263, CSA C22.2 No. 18.1, NOM ANCECertification/Listing: cULus
UL File No.: E92327, R40253
Warranty
Warranty: 2-Year Limited
