Description

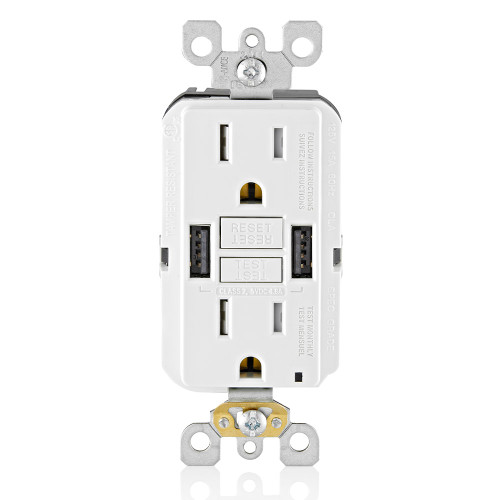

Leviton GUSB1-W 15A SmartlockPro¨ GFCI Combination 24W(4.8A) Type A USB In-Wall Charger Outlet

15A SmartlockPro¨ GFCI Combination 24W(4.8A) Type A USB In-Wall Charger Outlet

15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, SmartlockPro¨ Self-Test GFCI Combination Type A USB In-Wall Charger, Wire Leads, NEMA 5-15R, 24W (4.8 Amps), Dual Type-A/A USB Chargers, screws and self-grounding clip included - White

SAFE - Delivers continuous ground fault protection, automatically self-tests to ensure it can respond to a ground fault
FAST CHARGING - Smart chip technology provides over 2X the charging power of other GFCI USB outlets for a faster charge
CODE REQUIRED - Fulfill NEC¨ requirements anywhere GFCI protection is needed
SIMPLE - Status indicator light provides simple, intuitive feedback
INSTALL - Requires extra deep wallbox for installation

Product Features

Amperage: 15 A
At Rated Voltage: 1 HP
Brand: SmartlockPro
Color: White
Feature: Self-Test
Flammability: UL94, 5VA
Grade: Residential/Commercial Specification Grade
Grounding: Self-Grounding
Pole: 2
Product Type: GFCI/Outlet/USB Combo
Tamper Resistant: Yes
Termination: Wire leads (12AWG)
Trip Level: Class A, 5mA plus or minus 1mA
Type: GFCI/USB Combination
Voltage: 125 VAC
Wallplate: Not Included
Warranty: 2-Year Limited
Wire: 5

AC Horsepower Ratings

At Rated Voltage: 1 HP
Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current

Electrical Specifications

Grounding: Self-Grounding
Ratings: 15A - 125V, 4.8A @ 5V
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
Voltage: 125 VAC

Environmental Specifications

Flammability: UL94, 5VA

Operating Temperature: -10¡C to 40¡C

Material Specifications

Body Material: Thermoplastic
Color: White
Cover Material: Thermoplastic
Face Material: Thermoplastic
Grade: Residential/Commercial Specification Grade
Line Contacts: Brass Double Wipe .031 Thick
Product ID: Stamped on Strap
Strap Material: Galvanized Steel
Terminal ID: Green lead - GND. Line and load both have: Black lead - Hot, White lead - Neutral

Mechanical Specifications

Pole: 2
Tamper Resistant: Yes
Torque Range: 14-18 lbs.
Type: GFCI/USB Combination
Voltage: 125 VAC
Wire: 5

Standards & Certifications

ANSI: Yes
CSA C22.2 No. 42: Yes
CSA-C22.2 No. 144.1-06: Yes
FCC Part 15: Class B
Fed Spec WC-596: No
Listed: cCSAus
NOM: Yes
UL 1310: Yes
UL 498: Yes
Warranty: 2-Year Limited
