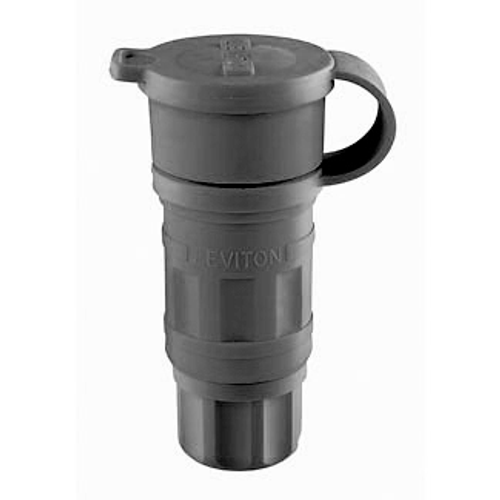

Leviton 67W81-B 20 Amp, 120/208 Volt 3-Phase Y, NEMA L21-20R, 4P, 5W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, Wetguard w/Cover - BLACK
Dielectric Voltage: Withstands 2000V per UL498
Phase: 3-Phase WYE
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Operating Temperature: -40¡C to 60¡C
Face Material: Nylon
Grounding Screw: Brass 8-32
Line Contacts: Brass .040 Thick
Terminal Screws: Brass 10-32
Yoke: Nickel-Plated Brass .050 Thick
Terminal Accom.: 14-8 AWG
Terminal ID: Brass-Hot, Green-Ground, White-Neutral
Dielectric Voltage: Withstands 2000V per UL498
Phase: 3-Phase WYE
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Operating Temperature: -40¡C to 60¡C
Face Material: Nylon
Grounding Screw: Brass 8-32
Line Contacts: Brass .040 Thick
Terminal Screws: Brass 10-32
Yoke: Nickel-Plated Brass .050 Thick
Terminal Accom.: 14-8 AWG
Terminal ID: Brass-Hot, Green-Ground, White-Neutral
20 Amp, 120/208 Volt 3-Phase Y, NEMA L21-20R, 4P, 5W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, Wetguard w/Cover - BLACK
Leviton's Wetguard line of industrial watertight wiring devices are the most versatile, well-engineered watertight devices on the market. They meet IP67 and NEMA ratings for water ingress protection, and offer many significant advantages over competitive brands.
AC Horsepower Ratings
At Rated Voltage: 2 HPElectrical Specifications
Current Limiting: Full Rated CurrentDielectric Voltage: Withstands 2000V per UL498
Phase: 3-Phase WYE
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Environmental Specifications
Flammability: Rated V-2 per UL 94Operating Temperature: -40¡C to 60¡C
Material Specifications
Base Material: NylonFace Material: Nylon
Grounding Screw: Brass 8-32
Line Contacts: Brass .040 Thick
Terminal Screws: Brass 10-32
Yoke: Nickel-Plated Brass .050 Thick
Mechanical Specifications
Product ID: Ratings and NEMA I.D. permanently marked on deviceTerminal Accom.: 14-8 AWG
Terminal ID: Brass-Hot, Green-Ground, White-Neutral
Product Features
Amperage: 20 A Base Material: Nylon
Color: Black
Device Type: Locking Outlet
Face Material: Nylon
Grounding: Grounding
NEMA: L21-20R
Pole: 4
Standards and Certifications: UL/CSA
Strap Material: Nickel-Plated Brass
Termination: Back
Voltage: 120/208 VAC
Warranty: Limited Lifetime Warranty
Wire: 5
CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL Fed Spec WC-596: File E13399
UL498: File E13399
Color: Black
Device Type: Locking Outlet
Face Material: Nylon
Grounding: Grounding
NEMA: L21-20R
Pole: 4
Standards and Certifications: UL/CSA
Strap Material: Nickel-Plated Brass
Termination: Back
Voltage: 120/208 VAC
Warranty: Limited Lifetime Warranty
Wire: 5
Standards and Certifications
ANSI: C-73CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL Fed Spec WC-596: File E13399
UL498: File E13399
AC Horsepower Ratings
At Rated Voltage: 2 HPElectrical Specifications
Current Limiting: Full Rated CurrentDielectric Voltage: Withstands 2000V per UL498
Phase: 3-Phase WYE
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Environmental Specifications
Flammability: Rated V-2 per UL 94Operating Temperature: -40¡C to 60¡C
Material Specifications
Base Material: NylonFace Material: Nylon
Grounding Screw: Brass 8-32
Line Contacts: Brass .040 Thick
Terminal Screws: Brass 10-32
Yoke: Nickel-Plated Brass .050 Thick
Mechanical Specifications
Product ID: Ratings and NEMA I.D. permanently marked on deviceTerminal Accom.: 14-8 AWG
Terminal ID: Brass-Hot, Green-Ground, White-Neutral
Product Features
Amperage: 20 A Base Material: Nylon
Color: Black
Device Type: Locking Outlet
Face Material: Nylon
Grounding: Grounding
NEMA: L21-20R
Pole: 4
Standards and Certifications: UL/CSA
Strap Material: Nickel-Plated Brass
Termination: Back
Voltage: 120/208 VAC
Warranty: Limited Lifetime Warranty
Wire: 5
CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL Fed Spec WC-596: File E13399
UL498: File E13399
Color: Black
Device Type: Locking Outlet
Face Material: Nylon
Grounding: Grounding
NEMA: L21-20R
Pole: 4
Standards and Certifications: UL/CSA
Strap Material: Nickel-Plated Brass
Termination: Back
Voltage: 120/208 VAC
Warranty: Limited Lifetime Warranty
Wire: 5
Standards and Certifications
ANSI: C-73CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL Fed Spec WC-596: File E13399
UL498: File E13399
