Leviton 5B101-H02 Submeter, 120V, 1 Phase 2 Wire, Single Element, 200A Potted Mini Meter, 1 kWh resolution, kWh Electric Meter, 1 Permanently Attached Current Transformer, mechanical counter not included - sold separately

Leviton

(No reviews yet) Write a Review
SKU:
LEVITON-5B101-H02
Weight:
0.00 LBS
Call for price
Leviton 5B101-H02 Submeter, 120V, 1 Phase 2 Wire, Single Element, 200A Potted Mini Meter, 1 kWh resolution, kWh Electric Meter, 1 Permanently Attached Current Transformer, mechanical counter not included - sold separately

Submeter, 120V, 1 Phase 2 Wire, Single Element, 200A Potted Mini Meter, 1 kWh resolution, kWh Electric Meter, 1 Permanently Attached Current Transformer, mechanical counter not included - sold separately

Discontinued Product. Single Element Potted Submeter Mini Meter, 1P/2W, 120V, 1 kWh Resolution, Mechanical Counter, 1 Permanently Attached 200:0.1A CT.

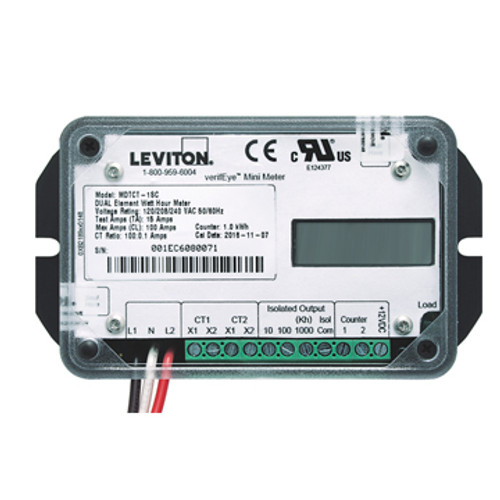

The VerifEyeª Potted Mini Meter line of revenue grade submeters come with permanently attached, highly accurate Solid Core Current Transformers (CTs) for revenue-grade performance certified to ANSI standards.



  • Measures kWh
  • Revenue grade: Conforms to all applicable standards of ANSI C12.1
  • Equipped standard with an Isolated Pulse Output channel for automated meter reading
  • Utilizes revenue grade 0.3% accuracy class 0.1A secondary solid core current transformers (CTs) that conform to all applicable ANSI requirements
  • Five year warranty


Electrical Specifications
Amperage: 200 A
Voltage: 120 VAC 1PH 2W

Product Features
CTs Included: 1 Solid Core CT
Communication: Pulse Output
Enclosure: No Enclosure
Meter Configuration: Single Meter
Product Line: Mini Meters
Product Type: Electric Submeter
