Leviton 5342-E 20 Amp
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Self-Grounding
Pole: 2
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125 VAC
Wire: 3
Operating Temperature: -40¡C to 60¡C
Face Material: Nylon
Ground Clips: Brass
Grounding Screw: Plated Steel
Line Contacts: Phosphor Bronze
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Self-Grounding
Pole: 2
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125 VAC
Wire: 3
Operating Temperature: -40¡C to 60¡C
Face Material: Nylon
Ground Clips: Brass
Grounding Screw: Plated Steel
Line Contacts: Phosphor Bronze

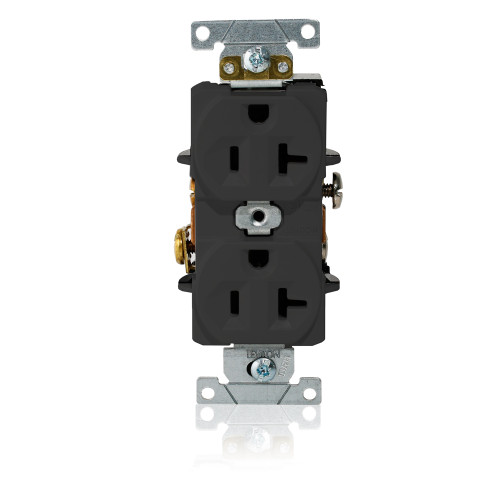

20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Industrial Series Heavy Duty Specification Grade, Duplex Receptacle, Straight Blade, Self Grounding, Side Wired, Steel Strap - BLACK
LevitonÕs line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
AC Horsepower Ratings
At Rated Voltage: 1 HPElectrical Specifications
Amperage: 20 ACurrent Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Self-Grounding
Pole: 2
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125 VAC
Wire: 3
Environmental Specifications
Flammability: Rated V-2 per UL 94Operating Temperature: -40¡C to 60¡C
Material Specifications
Body Material: PolypropyleneFace Material: Nylon
Ground Clips: Brass
Grounding Screw: Plated Steel
Line Contacts: Phosphor Bronze
Strap Material: Galvanized Steel with Riveted Ground Contacts
Terminal Screws: Plated Brass
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Torque Range: 14-16 inch pounds
NEMA: 5-20R
CSA C22.2 No. 42: File 152105
NEMA: WD-1 & WD-6
NOM: 057
UL Fed Spec WC-596: File E13399
UL498: File E13399
Warranty: 10-Year Limited
Terminal Screws: Plated Brass
Mechanical Specifications
Product ID: Ratings are permanently marked on deviceTerminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Torque Range: 14-16 inch pounds
Product Features
Color: BlackNEMA: 5-20R
Standards and Certifications
ANSI: C-73CSA C22.2 No. 42: File 152105
NEMA: WD-1 & WD-6
NOM: 057
UL Fed Spec WC-596: File E13399
UL498: File E13399
Warranty: 10-Year Limited
AC Horsepower Ratings
At Rated Voltage: 1 HPElectrical Specifications
Amperage: 20 ACurrent Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Self-Grounding
Pole: 2
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125 VAC
Wire: 3
Environmental Specifications
Flammability: Rated V-2 per UL 94Operating Temperature: -40¡C to 60¡C
Material Specifications
Body Material: PolypropyleneFace Material: Nylon
Ground Clips: Brass
Grounding Screw: Plated Steel
Line Contacts: Phosphor Bronze
Strap Material: Galvanized Steel with Riveted Ground Contacts
Terminal Screws: Plated Brass
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Torque Range: 14-16 inch pounds
NEMA: 5-20R
CSA C22.2 No. 42: File 152105
NEMA: WD-1 & WD-6
NOM: 057
UL Fed Spec WC-596: File E13399
UL498: File E13399
Warranty: 10-Year Limited
Terminal Screws: Plated Brass
Mechanical Specifications
Product ID: Ratings are permanently marked on deviceTerminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Torque Range: 14-16 inch pounds
Product Features
Color: BlackNEMA: 5-20R
Standards and Certifications
ANSI: C-73CSA C22.2 No. 42: File 152105
NEMA: WD-1 & WD-6
NOM: 057
UL Fed Spec WC-596: File E13399
UL498: File E13399
Warranty: 10-Year Limited
