Leviton 430C9WLEVA LEV Series IEC Pin & Sleeve Connector with Screwless Clamp Assembly
Current Interrupting: Certified for current interrupting at full-rated current and voltage
Dielectric Voltage: 3000V for 1 min.
Endurance: 2000 cycles total - 1000 cycles at Rated Current Voltage, 1000 cycles at no load
Horsepower Rating: 3 HP
Max. Voltage: 600V
Overload UL20 Test: 150% of rated current and 100% of rated voltage for 250 cycles
Phase: 3-Phase
Pole: 3
SCCR: 200kA
Temperature Rise: Max 30¡C rise at full rated current (after overload)
Voltage: 250 VAC
Wire: 4
Flammability: Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
IP Rating: IP66, IP67, IP68, IP69K
NEMA Enclosure Type: 3R, 4X, 6P and 12
NSF: 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
UV Resistance: UV stabilized F1 rated housings
Contact Carrier: Glass filled Nylon
Grommet/Gasket: NBR/Buna N
Current Interrupting: Certified for current interrupting at full-rated current and voltage
Dielectric Voltage: 3000V for 1 min.
Endurance: 2000 cycles total - 1000 cycles at Rated Current Voltage, 1000 cycles at no load
Horsepower Rating: 3 HP
Max. Voltage: 600V
Overload UL20 Test: 150% of rated current and 100% of rated voltage for 250 cycles
Phase: 3-Phase
Pole: 3
SCCR: 200kA
Temperature Rise: Max 30¡C rise at full rated current (after overload)
Voltage: 250 VAC
Wire: 4
Flammability: Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
IP Rating: IP66, IP67, IP68, IP69K
NEMA Enclosure Type: 3R, 4X, 6P and 12
NSF: 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
UV Resistance: UV stabilized F1 rated housings
Contact Carrier: Glass filled Nylon
Grommet/Gasket: NBR/Buna N

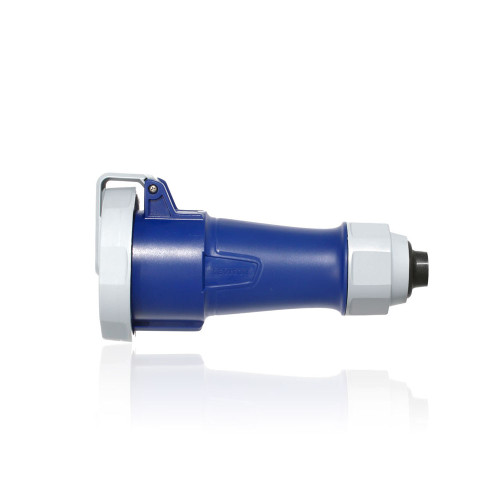

LEV Series IEC Pin & Sleeve Connector with Screwless Clamp Assembly
30 Amp, 250 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Connector with Screwless Clamp Assembly, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Blue
LEV Series IEC Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:
- Completely screwless back clamp cuts installation time and adds additional dust guard protection
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
- NSF certified sanitary design trusted for use in food & beverage facilities
Electrical Specifications
Amperage: 30 ACurrent Interrupting: Certified for current interrupting at full-rated current and voltage
Dielectric Voltage: 3000V for 1 min.
Endurance: 2000 cycles total - 1000 cycles at Rated Current Voltage, 1000 cycles at no load
Horsepower Rating: 3 HP
Max. Voltage: 600V
Overload UL20 Test: 150% of rated current and 100% of rated voltage for 250 cycles
Phase: 3-Phase
Pole: 3
SCCR: 200kA
Temperature Rise: Max 30¡C rise at full rated current (after overload)
Voltage: 250 VAC
Wire: 4
Environmental Specifications
Corrosion Resistance: Salt fog testedFlammability: Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
IP Rating: IP66, IP67, IP68, IP69K
NEMA Enclosure Type: 3R, 4X, 6P and 12
NSF: 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
UV Resistance: UV stabilized F1 rated housings
Material Specifications
Assembly Screws: 303 Stainless SteelContact Carrier: Glass filled Nylon
Grommet/Gasket: NBR/Buna N
Housing: Impact Modified Nylon
Terminal Screws: 303 Stainless Steel
Crush Test: 250 lbs for 1 min after -25¡C for 6 hrs
Hardware Head Type: Hex style socket screws for terminals, combination screws for all others
Impact: Drop from 30" 8 times after conditioning to -25¡C, for 6 hoursDrop from 72" after conditioning to -35¡C, for 6 hours
Color: Blue
Configuration: North American
Device Type: Connector
Feature: Screwless Clamp Assembly
Product Markings: Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label
Series: LEV Series
CSA: CSA C22.2 No 182.1-13 (Harmonized with UL 1682)
IEC Rating: 60309-1, 60309-2
NOM: NOM ÐANCE standards
RoHS: RoHS compliant components
UL: UL 1686 C2, UL 1682
Terminal Screws: 303 Stainless Steel
Mechanical Specifications
Conductor Range: #10 AWG to #8 AWGCrush Test: 250 lbs for 1 min after -25¡C for 6 hrs
Hardware Head Type: Hex style socket screws for terminals, combination screws for all others
Impact: Drop from 30" 8 times after conditioning to -25¡C, for 6 hoursDrop from 72" after conditioning to -35¡C, for 6 hours
Product Features
Clock Position: 9 o'clockColor: Blue
Configuration: North American
Device Type: Connector
Feature: Screwless Clamp Assembly
Product Markings: Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label
Series: LEV Series
Standards and Certifications
CE: CE certificationCSA: CSA C22.2 No 182.1-13 (Harmonized with UL 1682)
IEC Rating: 60309-1, 60309-2
NOM: NOM ÐANCE standards
RoHS: RoHS compliant components
UL: UL 1686 C2, UL 1682
Warranty
Warranty: 5-Year LimitedElectrical Specifications
Amperage: 30 ACurrent Interrupting: Certified for current interrupting at full-rated current and voltage
Dielectric Voltage: 3000V for 1 min.
Endurance: 2000 cycles total - 1000 cycles at Rated Current Voltage, 1000 cycles at no load
Horsepower Rating: 3 HP
Max. Voltage: 600V
Overload UL20 Test: 150% of rated current and 100% of rated voltage for 250 cycles
Phase: 3-Phase
Pole: 3
SCCR: 200kA
Temperature Rise: Max 30¡C rise at full rated current (after overload)
Voltage: 250 VAC
Wire: 4
Environmental Specifications
Corrosion Resistance: Salt fog testedFlammability: Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
IP Rating: IP66, IP67, IP68, IP69K
NEMA Enclosure Type: 3R, 4X, 6P and 12
NSF: 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
UV Resistance: UV stabilized F1 rated housings
Material Specifications
Assembly Screws: 303 Stainless SteelContact Carrier: Glass filled Nylon
Grommet/Gasket: NBR/Buna N
Housing: Impact Modified Nylon
Terminal Screws: 303 Stainless Steel
Crush Test: 250 lbs for 1 min after -25¡C for 6 hrs
Hardware Head Type: Hex style socket screws for terminals, combination screws for all others
Impact: Drop from 30" 8 times after conditioning to -25¡C, for 6 hoursDrop from 72" after conditioning to -35¡C, for 6 hours
Color: Blue
Configuration: North American
Device Type: Connector
Feature: Screwless Clamp Assembly
Product Markings: Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label
Series: LEV Series
CSA: CSA C22.2 No 182.1-13 (Harmonized with UL 1682)
IEC Rating: 60309-1, 60309-2
NOM: NOM ÐANCE standards
RoHS: RoHS compliant components
UL: UL 1686 C2, UL 1682
Terminal Screws: 303 Stainless Steel
Mechanical Specifications
Conductor Range: #10 AWG to #8 AWGCrush Test: 250 lbs for 1 min after -25¡C for 6 hrs
Hardware Head Type: Hex style socket screws for terminals, combination screws for all others
Impact: Drop from 30" 8 times after conditioning to -25¡C, for 6 hoursDrop from 72" after conditioning to -35¡C, for 6 hours
Product Features
Clock Position: 9 o'clockColor: Blue
Configuration: North American
Device Type: Connector
Feature: Screwless Clamp Assembly
Product Markings: Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label
Series: LEV Series
Standards and Certifications
CE: CE certificationCSA: CSA C22.2 No 182.1-13 (Harmonized with UL 1682)
IEC Rating: 60309-1, 60309-2
NOM: NOM ÐANCE standards
RoHS: RoHS compliant components
UL: UL 1686 C2, UL 1682
Warranty
Warranty: 5-Year Limited
