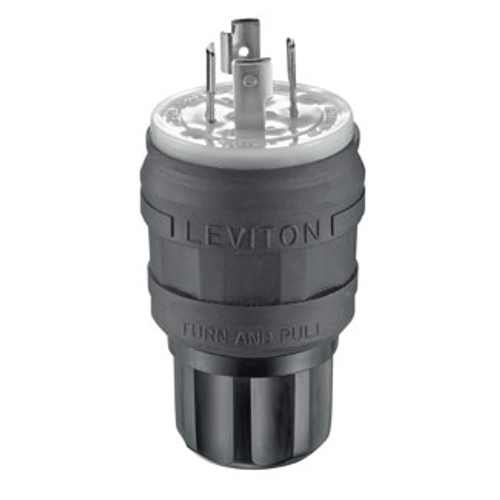

Leviton 26W74-B 20 Amp, 125/250 Volt, NEMA L14-20P, 3P, 4W, Locking Plug, Industrial Grade, Grounding, Wetguard - BLACK
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 3
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125/250 VAC
Wire: 4
IP Rating: IP66, IP67, IP69K
Operating Temperature: -40¡C to 60¡C
Blades/Contacts: Electroless Nickel-coated Brass
Body Interior: Nylon
Body Material: Santoprene TPV
Bushing: Santoprene TPV
Compression Nut, Strain Relief: Nylon
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 3
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125/250 VAC
Wire: 4
IP Rating: IP66, IP67, IP69K
Operating Temperature: -40¡C to 60¡C
Blades/Contacts: Electroless Nickel-coated Brass
Body Interior: Nylon
Body Material: Santoprene TPV
Bushing: Santoprene TPV
Compression Nut, Strain Relief: Nylon
20 Amp, 125/250 Volt, NEMA L14-20P, 3P, 4W, Locking Plug, Industrial Grade, Grounding, Wetguard - BLACK
Leviton's Wetguard line of industrial watertight wiring devices are the most versatile, well-engineered watertight devices on the market. They meet IP67 and NEMA ratings for water ingress protection, and offer many significant advantages over competitive brands.
Electrical Specifications
Amperage: 20 ACurrent Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 3
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125/250 VAC
Wire: 4
Environmental Specifications
Flammability: Rated V-2 per UL 94IP Rating: IP66, IP67, IP69K
Operating Temperature: -40¡C to 60¡C
Material Specifications
Assembly Screws: Stainless Steel, Non-MagneticBlades/Contacts: Electroless Nickel-coated Brass
Body Interior: Nylon
Body Material: Santoprene TPV
Bushing: Santoprene TPV
Compression Nut, Strain Relief: Nylon
Terminal Screws: Electroless Nickel-coated Brass
Wire Module: Nylon
Product ID: Ratings and NEMA I.D. permanently marked on device
Terminal Accom.: #16 to #10
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Device Type: Locking Plug
NEMA: L14-20P
CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL: 498
Warranty: Limited Lifetime Warranty Warranty
Wire Module: Nylon
Mechanical Specifications
Cord Grip Range (in): .375-.875Product ID: Ratings and NEMA I.D. permanently marked on device
Terminal Accom.: #16 to #10
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Product Features
Color: BlackDevice Type: Locking Plug
NEMA: L14-20P
Standards and Certifications
ANSI: C-73CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL: 498
Warranty: Limited Lifetime Warranty Warranty
Electrical Specifications
Amperage: 20 ACurrent Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 3
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125/250 VAC
Wire: 4
Environmental Specifications
Flammability: Rated V-2 per UL 94IP Rating: IP66, IP67, IP69K
Operating Temperature: -40¡C to 60¡C
Material Specifications
Assembly Screws: Stainless Steel, Non-MagneticBlades/Contacts: Electroless Nickel-coated Brass
Body Interior: Nylon
Body Material: Santoprene TPV
Bushing: Santoprene TPV
Compression Nut, Strain Relief: Nylon
Terminal Screws: Electroless Nickel-coated Brass
Wire Module: Nylon
Product ID: Ratings and NEMA I.D. permanently marked on device
Terminal Accom.: #16 to #10
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Device Type: Locking Plug
NEMA: L14-20P
CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL: 498
Warranty: Limited Lifetime Warranty Warranty
Wire Module: Nylon
Mechanical Specifications
Cord Grip Range (in): .375-.875Product ID: Ratings and NEMA I.D. permanently marked on device
Terminal Accom.: #16 to #10
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Product Features
Color: BlackDevice Type: Locking Plug
NEMA: L14-20P
Standards and Certifications
ANSI: C-73CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL: 498
Warranty: Limited Lifetime Warranty Warranty
