IVAT5S-75LPA740ZH/7PR

RAB Lighting

$818.00
(No reviews yet) Write a Review
SKU:
IVAT5S-75LPA740ZH/7PR
Availability:
Usually ships within 1 week.
Weight:
14.20 LBS
Shipping:
Calculated at Checkout
voltage:
480v
Kelvin:
4000K
Spec Sheet:
Spec Sheet
Instructions:
Instructions
Watts:
67W
Color Temp:
4000K (Neutral)
Lumens:
8,525 lm
Efficacy:
127 lm/W
Color Accuracy:
72 CRI
L70:
100,000 Hours
Type:
Constant Current
Input Watts:
67.1W
voltage:
480v
Kelvin:
4000K
Spec Sheet:
Spec Sheet
Instructions:
Instructions
Watts:
67W
Color Temp:
4000K (Neutral)
Lumens:
8,525 lm
Efficacy:
127 lm/W
Color Accuracy:
72 CRI
L70:
100,000 Hours
Type:
Constant Current
Input Watts:
67.1W
Adding to cart… The item has been added
Compliance
UL ListedSuitable for wet locations
IESNA LM-79 & LM-80 TestingRAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80
Title 24 CompliantAn IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
IP RatingIngress protection rating of IP66 for dust and water
DLC ListedThis product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: S-PFV3R2
Electrical
DriverClass 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming DriverDriver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD6.56% at 480V
Power Factor93.7% at 480V

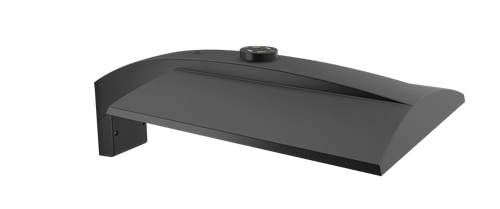

7-Pin ReceptacleANSI C136.41 7-pin receptacle, compatible with wireless control systems
Performance
Lifespan100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDsLong-life, high-efficacy, surface-mount LEDs
Color StabilityLED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color UniformityRAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather StartingThe minimum starting temperature is -40°C (-40°F)
Maximum Ambient TemperatureSuitable for use in up to 40°C (104°F)
HousingPrecision die-cast aluminum
IES ClassificationType VS distributes light in a square symmetrical pattern and is meant for large, commercial parking lot lighting as well as areas where sufficient, evenly distributed light is necessary
LensDiffused Polymethyl Methacrylate (PMMA)
Effective Projected AreaEPA = 0.61
FinishFormulated for high durability and long-lasting color
Green TechnologyMercury and UV free. RoHS-compliant components.
Installation
MountingUniversal pole adapter
