| Compliance | |
| UL Marine Listed | Marine Listed Outside Type (Saltwater) |
| NEMA Rating | 4X, protected against corrosion |
| IP Rating | Ingress protection rating of IP66 for dust and water |
| Electrical | |
| Dimming Driver | Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| THD | 2.15% at 120V, 3.37% 277V |
| Power Factor | 99.8% at 120V, 95.6% at 277V |
| Surge Protection | 2.5kV |
| Construction | |
| Housing | IK09 impact-resistant polycarbonate with 5VA flame rating*1/2" openings for conduit and bushing/cord entry*Polycarbonate is affected by cleaning agents or other liquids containing partial solvents such as low molecular weight aldehydes and ethers, ketones, esters, aromatic hydrocarbons and perchlorinated hydrocarbons. Click here for a detailed list of damaging chemicals. |
| Lens | Diffuse polycarbonate lens for low glare and maximum protection |
| Maximum Ambient Temperature | Suitable for use in up to 40°C (104°F) |
| Cold Weather Starting | The minimum starting temperature is -40°C (-40°F) |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Finish | Formulated for high durability and long-lasting color |
| Installation | |
| Mounting | Quick-mount, surface, stainless steel spring clips supplied. 4 additional mounting accessory kits available. |
| LED Characteristics | |
| LEDs | Long-life, high-efficacy, surface-mount LEDs |
| Color Stability | LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period |
| Color Uniformity | RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. |
| Performance | |
| Lifespan | 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |

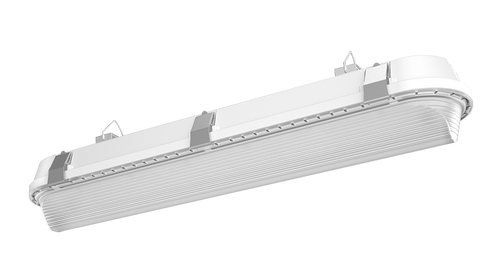

SHARK2M
RAB Lighting
$242.00
- SKU:
- SHARK2M
- Availability:
- Usually ships within 1 week.
- Weight:
- 0.00 LBS
- Shipping:
- Calculated at Checkout
- Spec Sheet:
- Spec Sheet
- Instructions:
- Instructions
- Watts:
- 25/20/15W
- Color Temp:
- 3500/4000/5000K
- Lumens:
- 2,270-3,683 lm
- Efficacy:
- 137.6-148.2 lm/W
- Color Accuracy:
- 83-85 CRI
- L70:
- 100,000 Hours
- Type:
- Constant Current
- V120:
- 0.21A/0.17A/0.13A
- V208:
- 0.12A/0.10A/0.09A
- V240:
- 0.11A/0.09A/0.08A
- V277:
- 0.10A/0.08A/0.07A
- Input Watts:
- 16-25.7W
