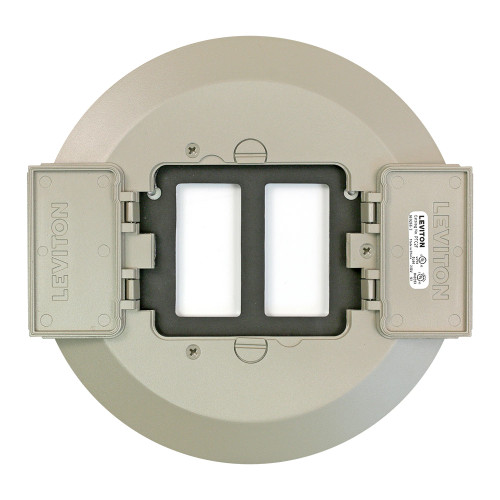

Poke-Through Cover, Nickel

Traditional Floor Cover For Use With Leviton 5" Poke Through Floor Box (PT500) Only; Accommodates All Standard Decora Receptacles. The Flip Lids Are A Double-Hinge Design That Can Open 180 Degrees And Lay Flat; Also Includes Metal Subplate And Pre-Assembled Gasket And Mounting Screws, And Cover Mounting Screws, Nickel

Only three cover assembly screws allow for easy installations and removals
Accommodates any standard Decora receptacle
ADA-Complaint
Available in nickel, brass, black or gray powder coat

*Poke-Through covers are sold separately from the PT500 system

*Poke-Through covers come with low voltage divider

Environmental Specifications

Duration Of Fire Protection: Certified for Fire Resistance in 1, 1-1/2 & 2hr fire rated concrete floors
Operating Temperature: -40¡C to 70¡C

Material Specifications

Cover Material: Aluminum

Mechanical Specifications

Dimensions: 8.38Ó Diameter X 0.36 High

Product Features

Color: Nickel
Device Type: Cover
Gasket: Pre-installed on Cover

Ground Plate Included: Yes, with pre-installed gasket
Openings: Flip Lid: Doors open 180¡
Receptacle Compatibility: Any 2 standard Decora receptacles and QuickPort Inserts
Type: Poke-Through

Standards & Certifications

Applicable Standards: UL514A, UL263, CSA C22.2 No. 18.1
Certification/Listing: cULus
UL File No.: E92327, R40253

Warranty

Warranty: 2-Year Limited
