| Field Adjustability | |
| Field Adjustable | Field Adjustable Light Output: 30W/20W/15W (factory default 30W)Color temperature selectable 3000K, 4000K and 5000K (factory default 4000K) |
| Compliance | |
| UL Listed | Suitable for wet locations |
| IP Rating | Ingress protection rating of IP65 for dust and water |
| DLC Listed | This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: S-MW1VZF |
| Electrical | |
| Driver | Constant Current, Class 2, 120-277V, 50/60 Hz 30W: 120V: 0.28A 208V: 0.14A, 240V: 0.13A, 277V: 0.12A 20W: 120V: 0.22A 208V: 0.10A, 240V: 0.08A, 277V: 0.07A 15W: 120V: 0.14A 208V: 0.07A, 240V: 0.06A, 277V: 0.06A |
| Dimming Driver | Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| THD | 30W: 2.82% at 120V, 9.29% at 277V20W: 3.16% at 120V, 11.85% at 277V15W: 5.05% at 120V, 20.56% at 277V |
| Power Factor | 30W: 99.7% at 120V, 93.5% at 277V20W: 99.6% at 120V, 90.2% at 277V15W: 98.9% at 120V, 81.6% at 277V |
| Photocell | Integrated photocell included with on/off switch |
| Surge Protection | 4kV |
| Performance | |
| Lifespan | 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Wattage Equivalency | 30W: Replaces up to 125W Metal Halide (MH) or 100W High Pressure Sodium (HPS) 20W: Replaces up to 100W Metal Halide (MH) or 100W High Pressure Sodium (HPS) 15W: Replaces up to 70W Metal Halide (MH) or 70W High Pressure Sodium (HPS) |
| LED Characteristics | |
| LEDs | Long-life, high-efficacy, surface-mount LEDs |
| Color Uniformity | RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. |
| Construction | |
| Housing | Aluminum alloy |
| Lens | Prismatic, heat-resistant borosilicate glass |
| Reflector | Aluminum |
| Gaskets | High-temperature silicone |
| Cold Weather Starting | The minimum starting temperature is -40°C (-40°F) |
| Maximum Ambient Temperature | Suitable for use in up to 40°C (104°F) |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Finish | Formulated for high durability and long-lasting color |
| Installation | |
| Mounting | Hinged wiring access and conduit entries on the back sides, top and bottom make installation a snap |
| Sensor Settings | |
| Microwave Motion Sensor | Microwave based technology occupancy sensor that automatically affect the operation of lighting equipment based upon detecting the presence or absence of people in a space. |
| Factory Settings | Brightness: 100%Hold Time: 20 MinutesDaylight: DisabledSensitivity: 100%Stand-by dimming level: 20%Stand-by time: 1 Minute |
| Remote Control | Adjust settings using remote control (catalog# MSR1). Only available with 0-10V dimming driver options. Remote control available here. |

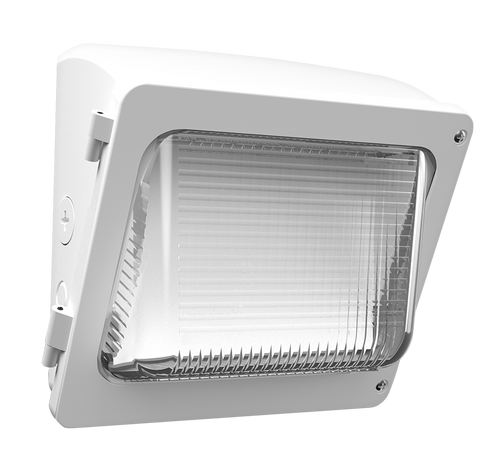

WPX1W/MVS
RAB Lighting
$256.00
- SKU:
- WPX1W/MVS
- Availability:
- Usually ships within 1 week.
- Weight:
- 6.10 LBS
- Shipping:
- Calculated at Checkout
- Sell Sheet:
- Sell Sheet
- Spec Sheet:
- Spec Sheet
- Instructions:
- Instructions
- Watts:
- 30/20/15W
- Color Temp:
- 3000/4000/5000K
- Lumens:
- 2,497-4,739 lm
- Efficacy:
- 134.6-146.8 lm/W
- Color Accuracy:
- 82-84 CRI
- L70:
- 100,000 Hours
- Type:
- Constant
- V120:
- 0.28A/0.22A/0.14A
- V208:
- 0.14A/0.10A/0.07A
- V240:
- 0.13A/0.08A/0.06A
- V277:
- 0.12A/0.07A/0.05A
- Input Watts:
- 17.7-33.3W
