APPLICATION:

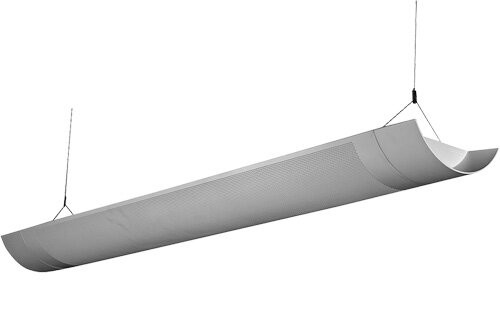

The ELS is compact size LED strip with field adjustable wattage and color temperature. An Ideal for a size restricted architectural applications as all as for storage areas, displays, institutions, industrial and retail applications.
FEATURES:
- Die-formed steel channel with knock-outs for versatile configuration and simple mounting.
- One continuous lens for 8-feet fixtures.
- All Steel surfaces are painted after fabrication with high gloss baked white matte powder paint.
- Frosted lens.
- Field adjustable wattage and color temperature.
- 13.2% uplight.
- Paint after fabrication
MOUNTING:
- Fixture is wall or surface mounted or pendant mounted, or suspended mounted with chains. (V-hook and chain kit is ordered separately)
- Compatible with most ceiling types.
LED:
- High quality array LEDs.
- Field adjustable color temperature: 3500/4000/5000(K)
- Color Rendering Index: > 80
- Field adjustable wattage.
- Reported L70 (hours): >54,000
ELECTRICAL:
- High power factor electronic driver, operate from a 120 ~ 277 Vac input range.
- Features included over surge protection.
- Power Factor: typical > 0.90, THD <20.
- Dimming Control: 0-10V 10%~100%.
ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- ÒWatchdogÓ feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.
LISTING:
- UL/CUL listed and labeled.
- Suitable for dry and damp locations.
- DLC listed.
- CEC Compliant EM (please contact for more information)
- 5 years warranty.
- ARRA compliant (optional).
