APPLICATION:

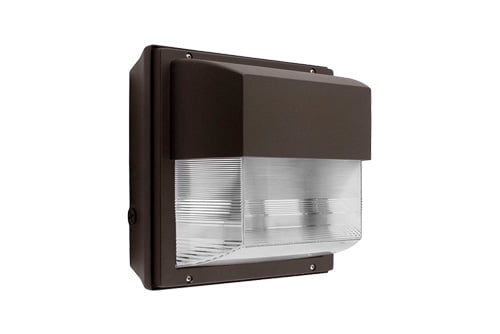

The medium wall pack is ideal for both commercial and residential applications with wall mounting. Use on factories, warehouses, self storage, commercial buildings, entrances, walkways or loading docks.
FEATURES:
- Die-cast aluminium housing, Injection-molded polycarbonate diffuser. Door frame holds lens and seals housing gasket.
- Housing with 1/2Ó feed-through hubs provided.
- Housing has waterproof bar of EVA included to prevent any leakage and wet location.
- Dark bronze powder paint finish is standard; white or black finish is also available.
MOUNTING:
- Wall mounting only.
- Easily installed on recessed junction boxes or on direct mounts to the wall with feed thru 1/2Ó conduit access.
REFLECTOR & COVER:
- Anodized specular aluminum reflector with high efficiency and wide beam spread.
- High impact polycarbonate (with UV) clear prismatic diffuser.
LAMP:
- Vertical lamp position, HID Lamps have medium base (E26 BD/ED17) porcelain socket with screw shell and center contact.
- Compact fluorescent GX24q 4-pin base lamp option.
- Lamp included.
ELECTRICAL:
- Compact fluorescent lamps use a multi-voltage (120-277V) electronic, sound rate A, high power factor ballast ambient operating temperature of -20¡F (-30¡C).
- MH ballasts are standard high power factor ballast with ambient operating temperature of -20¡F (-30¡C) to 108¡F (90¡C); 180¡C insulation system.
- HPS ballasts are standard high power factor ballast with ambient operating temperature of -40¡F (-40¡C); 180¡C insulation system.
LISTING:
- UL/CUL listed.
- Suitable for wet location.
- ARRA compliant (optional).
