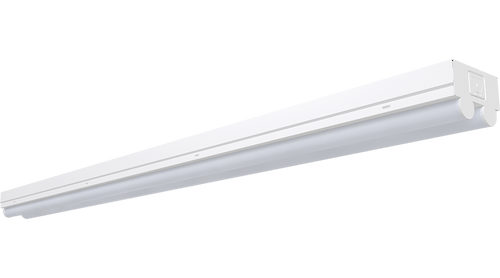

STRP440-840U/MVS

RAB Lighting

$163.00
(No reviews yet) Write a Review
SKU:
STRP440-840U/MVS
UPC:
19813950082
Availability:
Usually ships within 1 week.
Weight:
6.80 LBS
Shipping:
Calculated at Checkout
voltage:
277v
sub-tech:
LED
Kelvin:
4000K
Size/Length:
4'
Spec Sheet:
Spec Sheet
Instructions:
Instructions
Watts:
40W
Color Temp:
4000K (Neutral)
Lumens:
5,539 lm
Efficacy:
147.6
Color Accuracy:
84 CRI
L70:
50,000 Hours
Type:
Constant Current
V120:
0.40A
V208:
0.19A
V240:
0.17A
V277:
0.15A
Input Watts:
39W
voltage:
277v
sub-tech:
LED
Kelvin:
4000K
Size/Length:
4'
Spec Sheet:
Spec Sheet
Instructions:
Instructions
Watts:
40W
Color Temp:
4000K (Neutral)
Lumens:
5,539 lm
Efficacy:
147.6
Color Accuracy:
84 CRI
L70:
50,000 Hours
Type:
Constant Current
V120:
0.40A
V208:
0.19A
V240:
0.17A
V277:
0.15A
Input Watts:
39W
Adding to cart… The item has been added
Compliance
UL ListedSuitable for damp locations
IESNA LM-79 & LM-80 TestingRAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80
California Title 24Can be used to conform with the requirements of California Title 24 Part 6.
Trade Agreements Act CompliantThis product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC ListedThis product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: P0XBIQDUDLC Product Code: POL0H1CH
Electrical
DriverClass 2, Constant Current, 120-277V, 50-60Hz, 120V:0.34A, 208V: 0.20A, 240V: 0.17A, 277V: 0.15A
Dimming DriverDriver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD5.86% at 120V, 7.63% at 277V
Power Factor99.7% at 120V, 97.2% at 277V
Performance
Lifespan50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDsLong-life, high-efficacy, surface-mount LEDs
Color StabilityLED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color UniformityRAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather StartingThe minimum starting temperature is -20°C (-4°F)
Maximum Ambient TemperatureSuitable for use in up to 50°C (122°F)
HousingSheet metal stamping 24 gauge, cold-rolled steel
Connecting AdaptorMay link up to 15 fixtures using connecting adaptor included with each fixture for easy installation. Separate connecting plate (order as accessory) recommended for each connection point.
FinishFormulated for high durability and long-lasting color
Green TechnologyMercury and UV free. RoHS-compliant components.
Installation
MountingComes standard with surface mounting hardware. Accessories available for suspension hook mounting or J-Box mounting (purchased separately).
Sensor Settings
Capacitance Load400VA at 120VAC, 800VA at 230VAC, 1000VA at 277VAC
Operating Temperature-20°C to +60°C (-4°F to +140°F)
Warming-Up20s
RelayZero-cross relay
Operating Frequency5.8Ghz +/-75MHz
Transmission Power<0.2mW
Detection RangeMax. 26ft (8m) x 16ft (5m) Diameter x Height
Detection Angle30° ∼ 150°
Sensitivity10% / 50% / 75% / 100%
Hold -Time5s ∼ 30min (selectable)
Daylight Threshold2 ∼ 50 lux, disabled
Stand-By Period0s ∼ 1h +∞ (selectable)
Stand-by Dimming Level10% / 20% / 30% / 50%
IP RatingIP20
Remote Control AccessoryAdjust settings using remote control (catalog# MVSREM). Only available with 0-10V dimming driver options. Remote control available here.
