| General | |
| Status | Active |
| Watts | 11W |
| Incandescent Equivalent | 50W |
| Fluorescent Equivalent | 24W |
| Volts | Ballast Dependent |
| Ballast Type | Type A |

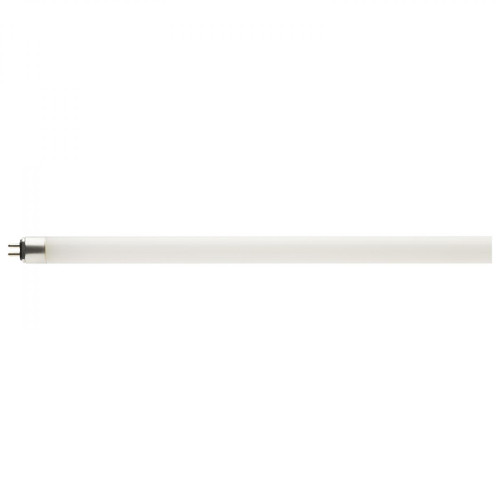

| Shape | T5 |
| Base | Miniature Bi Pin |
| ANSI Base | G5 |
| Nominal Length | 24 |
| Finish | White |
| CCT (Kelvin) | 3500K |
| Temperature | Neutral White |
| CRI | 82 |
| Lumens | 1350L |
| Beam Spread | 185 |
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Product Category | Type A |
| Lamp Type | Type A |
| Technology | LED |
| Electrical | |
| Watts | 11W |
| Incandescent Equivalent | 50W |
| Fluorescent Equivalent | 24W |
| Volts | Ballast Dependent |
| Ballasting Requirements | Ballast required |
| Ballast Type | Type A |
| Operating Frequency | 50/60Hz |
| CCT (Kelvin) | 3500K |
| Temperature | Neutral White |
| CRI | 82 |
| Lumens | 1350L |
| Beam Spread | 185 |
| Dimmable | Yes-Dimmable |
| Dimming Note | Only in Type A mode; Check Ballast MFG for Dimmer Compatibility |
| Power Factor | 0.9 |
| Hours Rated | 50000 |
| THD | 20% |
| Operating Temperature | -20C (-4F) to +45C (+113F) |
| Physical | |
| MOL | 22.5 |
| MOD | 0.63 |
| Nominal Length | 24 |
| Shape | T5 |
| Base | Miniature Bi Pin |
| ANSI Base | G5 |
| Finish | White |
| Material | Aluminum / Glass |
| Lens Material | Glass |
| Weight (lb.) | 0.13 |
| Additional Information | |
| Additional Info | Light Emitting Area of 325 degrees; System Wattage (Type A) - 14W |
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | Yes |
| Warranty | 5 Year Limited - T5 LED Bulbs |
| Compliance | |
| Safety Listing | cULus - Certified; cULus - Listed |
| Location Rating | Damp |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| NSF Approved | Yes |
| SDS Sheet | LED Lamp |
| Packaging | |
| Each UPC | 045923199462 |
| Each Quantity | 1 |
| Each Length (in.) | 22.17 |
| Each Width (in.) | 0.65 |
| Each Height (in.) | 0.65 |
| Each Weight (lb.) | 0.13 |
| Each Cube (CuFt.) | 0.0054 |
| Pack Type | Box |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923199469 |
| Case Quantity | 25 |
| Case Length (in.) | 23.86 |
| Case Width (in.) | 4.06 |
| Case Height (in.) | 3.94 |
| Case Weight (lb.) | 3.93 |
| Case Cube (CuFt.) | 0.2209 |
5 Year Limited - T5 LED Bulbs
