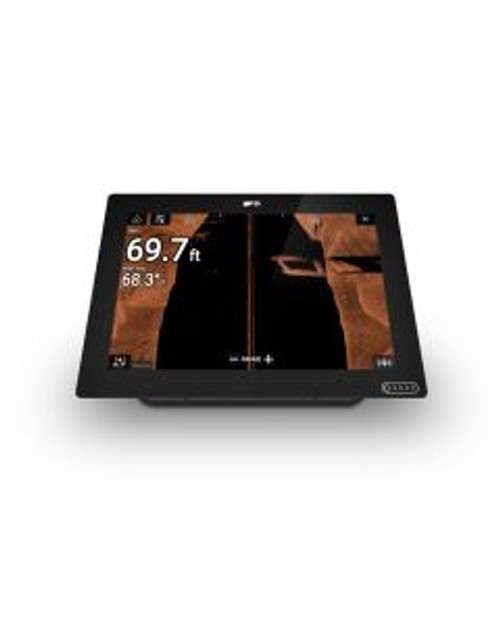

Raymarine Axiom+ 12RV 12" MFD RV100 Transom Transducer Lighthouse North America Chart RAYE7063903102
What's in the Box:
Raymarine Axiom+ 12 12" Muilti-Function Display with RealVison Sonar, with RV100 Transducer with Lighthouse North America Charts
Model: E70639-03-102- Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts.
- Powerful quad-core processor, plus increased onboard storage for personal data and apps.
- Smart and intuitive LightHouse 3 OS makes navigating easy.
- ClearCruise™ Augmented Reality-capable for smarter navigation decisions.
- Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls.
- IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.
- Network with multiple Axiom displays, radars, sonar, and more.
- Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning.
The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.
New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.
Specifications| General | |
| Display Size | 12.1 inch High Density IPS |
| Display Resolution | 1280 x 720 (WXGA) |
| Display Type | Multitouch with HydroTough™ rugged hydrophobic coating |
| Brightness | 1,800 nits |
| Viewing Angle | 88° Top, Bottom, Left, Right |
| Dimensions W x H x D (Excluding trunnion and cables) | 12.36 x 8.54 x 3.0in |
| Mounting Options | Surface, Flush, Trunnion, (Front installation bracket available) |
| Waterproof Rating | IPX6 / IPX7 |
| Operating Temperature Range | -25°C to +55°C (-13°F to +131°F) |
| Storage Temperature Range | -30°C to +70°C (-22°F to +158°F) |
| Power | |
| Voltage | 12V DC (8V to 16V DC) |
| Power Consumption (Full brightness) | 19.96 Watts |
| Sensors | |
| GNSS / GPS | Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required |
| Sonar Type (Built-in) | RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D |
| Sonar Connections | 25pin RealVision™ type connector |
| Sonar Depth | High CHIRP Sonar = 900 feet (274m) DownVision™ = 600 feet (183m) SideVision™ = 300 feet (91m) RealVision™ 3D = 300 feet (91m) |
| External Sonar Option | Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet |
| Radar | Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars |
| AIS | Yes - NMEA2000 compatible |
| Autopilot Control | Yes - Evolution Autopilot |
| Thermal Night Vision | Yes FLIR AX8, M232, M300 Series, M400, M500 |
| Video / Camera | Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras) |
| Weather | GRIB View - Free GRIB viewer and Theyr Ltd Subscription SiriusXM - N. America Only |
| Audio | NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio |
| Digital Switching | Yes - Empirbus & C-Zone compatible |
| Remote Control | Yes Optional RMK-10 (A80438) |
| Networking | |
| Ethernet | 1 x 10/100 Mbit/s Network (RayNet) |
| NMEA0183 | No |
| NMEA2000 | NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter |
| SeaTalkNG | Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box) |
| USB | 1 x USB microAB |
| Wi-Fi | WiFi - 802.11 a/b/g/n |
| BlueTooth | Bluetooth v4.0 |
| Navigation | |
| Cartography | Lighthouse Charts, Navionics, and C-MAP compatible |
| Waypoint/Routes/Tracks (Wpts/Rts/Trk) | 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts |
| Memory | |
| Internal Memory | 16 GB Solid State |
| External Memory | 1x MicroSD Card Slot |
| Languages | 24 |
| Conformances | NMEA 2000 certification Europe: 1999/5/EC Australia and New Zealand: C-Tick, Compliance Level 2 FCC 47CFR part 15 Industry Canada RSS210 |
What's in the Box:
- Multifunction Display
- Trunnion bracket
- Trunnion knobs x 2
- Suncover — Trunnion mount
- Panel mount gasket for surface/flush mounting
- M5x58 Threaded studs x 4
- M5 Thumb nuts x 4
- Documentation pack
- DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in)
- Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
- Rear mounting brackets
- Lighthouse North America Charts mSD
- RV100 Transducer
