| Compliance | |
| UL Listed | Suitable for wet locations |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80. |
| DLC Listed | This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: PQ7GE5D7 |
| Performance | |
| Lifespan | 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Wattage Equivalency | Equivalent to 200W Metal Halide |
| LED Characteristics | |
| LEDs | Multip-chip, high-output, long-life LEDs |
| Construction | |
| Cold Weather Starting | The minimum starting temperature is -30°C (-22°F) |
| Maximum Ambient Temperature | 40°C (104°F) |
| Housing | Die-cast aluminum |
| Reflector | Aluminum alloy |
| Lens | Glass |
| Gaskets | High-temperature silicone gaskets |
| Finish | Formulated for high durability and long-lasting color |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Electrical | |
| Driver | Constant Current, 480V, 50/60 Hz, 480V: 0.11A |
| Dimming Driver | Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| THD | 8.41% at 480V |
| Power Factor | 98.1% at 480V |
| Surge Protection | 6kV |
| Installation | |
| Mounting | Surface mount |
| Optical | |
| BUG Rating | B1 U4 G4 |

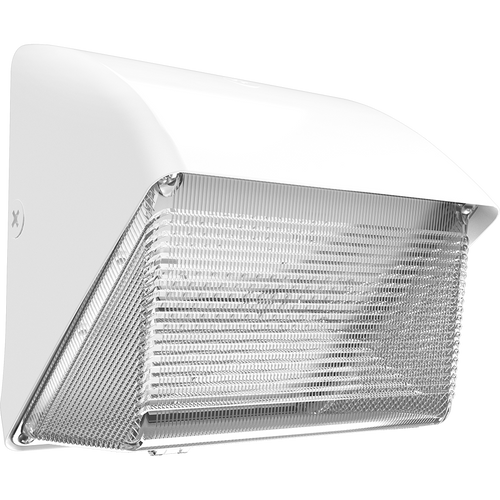

WP3LED75L-740WH
RAB Lighting
- SKU:
- WP3LED75L-740WH
- Availability:
- Usually ships within 1 week.
- Weight:
- 24.70 LBS
- Spec Sheet:
- Spec Sheet
- Instructions:
- Instructions
- Watts:
- 51W
- Color Temp:
- 4000K (Neutral)
- Lumens:
- 7,652 lm
- Efficacy:
- 155.5
- Color Accuracy:
- 72 CRI
- L70:
- 100,000 Hours
- Type:
- Constant Current
- Input Watts:
- 49.2W
