| Compliance | |
| UL Classified | Suitable for wet locations |
| NEC Compliant | Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C5). |
| Energy Star Approved | ENERGY STAR® Version 1.0 Certified |
| Certification Model Number | DLR0015(R6R14835120WB) |
| Electrical | |
| Dimming Driver | TRIAC compatible dimmer with dimming as low as 5%. See dimmer compatibility guide here. |
| THD | 13.33% at 120V |
| Power Factor | ≥0.9 |
| THDi | Produces less than 20% THD |
| PF | ≥0.9 |
| Input Voltage | 120V |
| Operating Frequency (Hz) | 60Hz |
| Performance | |
| Lifespan | 50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Wattage Equivalency | 100W Incandescent |
| Construction | |
| Shape | Round |
| Trim Style | Baffle |
| Housing | Constructed from durable steel sheet metal |
| Cold Weather Starting | The minimum starting temperature is -30°C (-22°F) |
| Maximum Ambient Temperature | Suitable for use in up to 40°C (104°F) |
| Lens | Frosted polycarbonate diffusion lens. Regressed lens. Constructed from durable sheet metal construction. |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Socket Adapter | Edison 26 Medium Base Socket adapter included in box |
| Finish | Matte White |
| LED Characteristics | |
| Beam Angle | 95°±10° |
| LEDs | Long-life, high-efficacy, surface-mount LEDs |
| Flicker | Silent and flicker free operations of less than 30% |
| Installation | |
| Mounting | Easy installation with friction clips (4") and torsion springs (5"/6") |

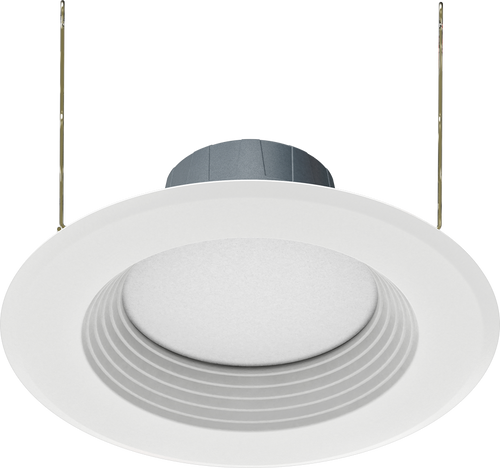

R6R14840120WB
RAB Lighting
- SKU:
- R6R14840120WB
- UPC:
- 19813512457
- Availability:
- Usually ships within 1 week.
- Weight:
- 0.70 LBS
- Spec Sheet:
- Spec Sheet
- Instructions:
- Instructions
- Watts:
- 14W
- Color Temp:
- 4000K (Neutral)
- Lumens:
- 1,545 lm
- Efficacy:
- 100
- Color Accuracy:
- 80 CRI
- L70:
- 50,000 Hours
- Type:
- Constant Current
- V120:
- 0.13A
- Input Watts:
- 13.6W
