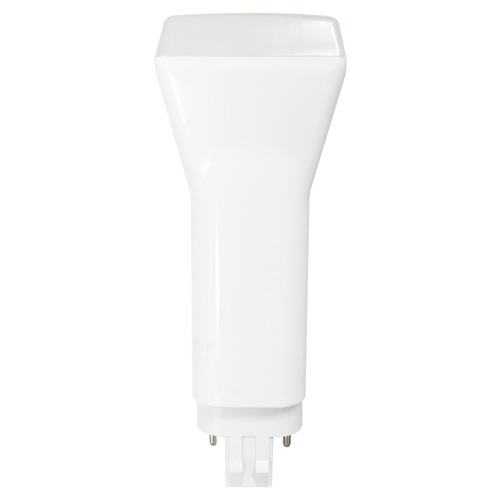

PLS-5.5-V-840-HYB

RAB Lighting

$8.99

(No reviews yet) Write a Review

Spec Sheet:

Instructions:

Watts:

Color Temp:

4000K

Lumens:

630 lm

Efficacy:

115

Color Accuracy:

80 CRI

L70:

50,000 Hours

Type:

Constant Current

V120:

62mA

V277:

20mA

Input Watts:

5.5W

Current Stock:

Quantity:

Adding to cart… The item has been added

Performance
Product Type	Compact
Input Wattage	5.5W
Lumens	630lm
Efficacy	115lm/W
L70 Lifespan	50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency	13W Gx23
LED Characteristics
Color Accuracy (CRI)	80
Color Temperature	4000K
Beam Angle	120°
Electrical
THD	20%
Power Factor	>0.9
Dimmable	Non-Dim
Input Voltage	120-277 Type B (Type A dependent on ballast)
Operating Frequency	50/60Hz
Operating Temperature	-20°C to 45°C (-4°F to 113°F)
Construction
Bulb Shape	PLS-Vertical
Enclosure Material	Polycarbonate
Housing Finish	White
Lens Finish	Frosted
Installation
Base Type	2-Pin Gx23-2
Installation Method	UL Type A with Magnetic Ballasts & UL Type B (Dual Mode)
Burning Position	Vertical
Compliance
Listings	UL Listed, UL Classified
Environment	Damp / Open
RoHS	Mercury and UV free. RoHS-compliant components.
FCC	Complies with Part 15B of the FCC Rules
Certification Model Number	T10213(PLS-5.5-V-840-HYB)
