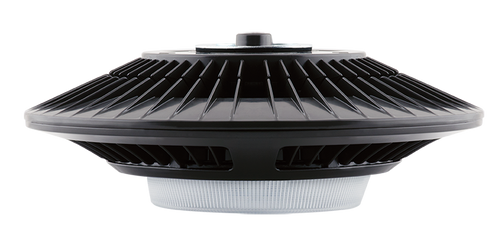

PLED26Y

RAB Lighting

$636.00

(No reviews yet) Write a Review

Spec Sheet:

Instructions:

Watts:

26W

Color Temp:

3000K (Warm)

Lumens:

2,285 lm

Efficacy:

79.9 lm/W

Color Accuracy:

73 CRI

L70:

100,000 Hours

Type:

Constant Current

V120:

0.30A

V208:

0.17A

V240:

0.15A

V277:

0.13A

Input Watts:

28.6W

Current Stock:

Quantity:

Adding to cart… The item has been added

Compliance
UL Listed	Suitable for wet locations
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan	100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDs	High-output, long-life LEDs
Color Consistency	3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability	LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity	RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting	The minimum starting temperature is -40°C (-40°F)
Thermal Management	Optimized using computational fluid dynamics software to ensure long LED and driver lifespan
Housing	Precision die-cast aluminum housing, lens frame
Lens	Clear tempered glass lens
Gaskets	High-temperature silicone
Finish	Formulated for high durability and long-lasting color
Green Technology	Mercury and UV free. RoHS-compliant components.
Optical
BUG Rating	B1 U1 G0
Electrical
Driver	Driver, Constant Current, Class 2, 100V-277V, 50/60 Hz, 6kv Surge Protection, 720mA, 100-277VAC 0.4 Amps., Power Factor 98.7%.
THD	14.7% at 120V
