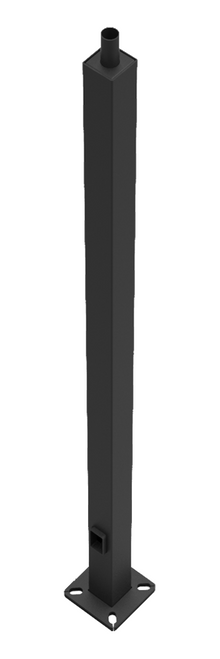

RAB Lighting PS4-07-25WT Pole 4 Square 7 Gauge 25Ft Welded Tenon Square Base, PS4-07-25WT or RAB

PS4-07-25WT

RAB Lighting

$1,332.00
(No reviews yet) Write a Review
SKU:
PS4-07-25WT
UPC:
19813181721
Availability:
Usually ships within 1 week.
Weight:
240.00 LBS
Shipping:
Calculated at Checkout
Mounts:
Square
Size/Length:
25'
Spec Sheet:
Spec Sheet
Mounts:
Square
Size/Length:
25'
Spec Sheet:
Spec Sheet
Adding to cart… The item has been added
Compliance
CSA ListedSuitable for wet locations
Construction
Shaft46,000 p.s.i. minimum yield.
Hand HolesReinforced with grounding lug and removable cover
Base Plates36,000 p.s.i. minimum yield.
Shipping ProtectionAll poles are shipped in individual corrugated cartons to prevent finish damage
ColorBronze powder coating
Height25 ft
Gauge7
Wall Thickness3/16"
Shaft Size4"
Hand Hole Dimensions3" x 5"
Bolt Circle8 1/2"
Base Dimension8"
Weight272 lbs
Anchor BoltGalvanized anchor bolts and galvanized hardware and anchor bolt template. All bolts have a 3" hook.
Anchor Bolt TemplatesWARNING Template must be printed on 11" x 17" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.
Pre-Shipped Anchor BoltsBolts can be pre-shipped upon request for additional freight charge
Max EPA's/Max Weights70MPH 9.0 ft/330 lb.80MPH 5.2 ft/325lb.90MPH 2.6 ft/325 lb.100MPH 0.8 ft/310 lb
