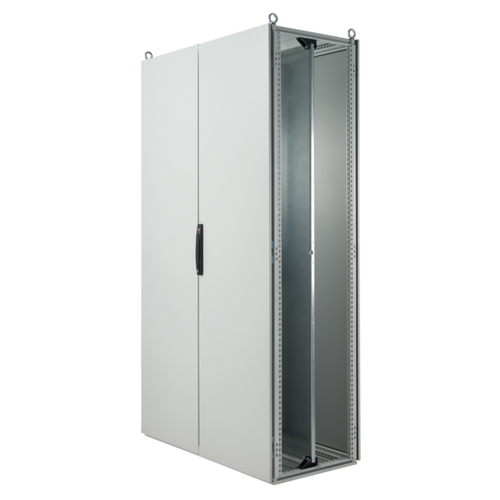

nVent Hoffman PPOD22125 ProLine Industrial Packages Type 12 2-Dr, 2200x1200x500, Lt Gray, Steel
Frames are roll-formed, robotically welded with solid steel, fully welded corners; accommodates 25 mm DIN standard Standard door bars increase strength and rigidity and allow for an extra mounting options Seamless foam-in-place gasket provides a protective seal against moisture and contaminants Gasket and latching system together ensure a solid seal with low closure force Reversible door, left hinged as a default, with 130-degree swing Galvanized mounting plates Capped ground studs on door, rear and top panel Integral frame channels support the full weight of the mounting plates Frame thickness 12 gauge/2.5 mm carbon steel powder painted in RAL 7035 Door thickness 14 gauge/2.0 mm, carbon steel powder painted ððð for details please check reference tables Mounting panel 2.5 mm on single bay, 3.0 mm on double bay, galvanized steel Rear panel and solid top 1.5 mm, carbon steel powder painted; RAL 7035
UL 508A Listed; Type 12; File Number E61997
