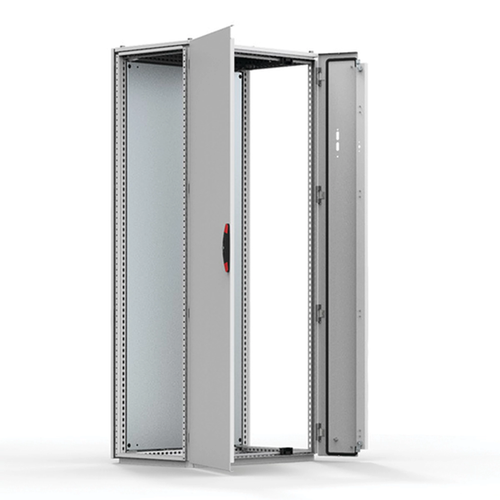

nVent Hoffman MCF18085R5 Flange Mount Disconnect, MCF, 1800x800x500mm, Zinc Plated, Mild Steel
Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern Door: Mounted with four hinges including door frame with 25 mm hole pattern; door can not be reversed Flange door: Surface mounted with hinges, locked from the inside, including universal cut-out Rear panel: Fitted by M6 torx screws; standard facilities for rear doors mounting Supplied as an accessory Removable roof panel Lock, left door: Espagnolette 4-point locking system which does not interfere with the enclosure inner space; standard double-bit lock with 3 mm insert Bottom plate: Consists of three pieces. Mounting plate: Double folded and adjustable in depth by steps of 25 mm, with the MPD02 accessory Earthing/Grounding: All panels are earthed/grounded through their fittings and equipped with a separate earthing stud Mounting requirements: Standard delivery ready for combined installation; sides of the group of combined enclosures must be closed with side panels SPM Delivery: Frame with fitted doors, rear panel, roof panel, bottom plates, mounting plate and door frame and includes earthing bolts
UL 508A Listed; Type 12; File No. E92044
cUL Listed per CSA C22.2 No.0, No.0.4, No.14, No.94; Type 12; File No. E92044
