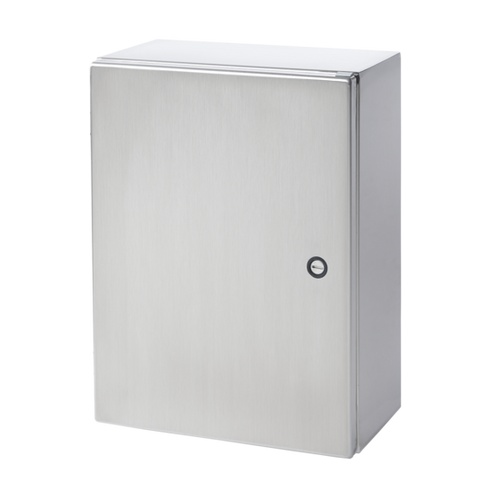

nVent Hoffman CSD16128SSST Concept Sloped Top Wallmount 1/4-Turn Latch Type 4X, 16x12x8, Brushed, SS 304
20 degree sloped top prevents pooling of liquids and accumulation of other debris Minimum-width body flange provides maximum body opening External formed 90-degree body flange Panel mounting studs fit optional Concept panels and other accessories Mounting holes in back of body for direct mounting or for optional external mounting brackets Type 304 stainless steel hidden hinges promote clean aesthetic appearance (two hinges on models under 36 in. in height; three hinges for models 36 in. and taller) Corner-formed doors are interchangeable and easily removed by pulling clip-style hinge pins Provision on door for thermoplastic data pocket Provision on door for optional door stop kit Seams continuously welded and ground smooth Stainless steel quarter-turn latches furnished with flush slotted insert Seamless foam-in-place gasket Self-grounding latch system with double seal Bonding provision on door; grounding stud on body Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wall-mounting holes Installation instructions
UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997
