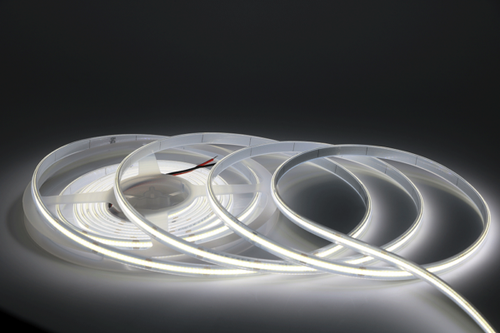

- Waterproof IP65
- Seamless linear light Ð no diffused cover needed
- No hotspots and with CRI 90+ for vibrant colors
- Higher efficiency and more flexibility than SMD LED strips
- 3 W/ft, 100 lm/W, 16.4 ft long, 5/16_ (10 mm) wide
- Easy to install and low maintenance
- 3000K and 5000K options
Video Overview

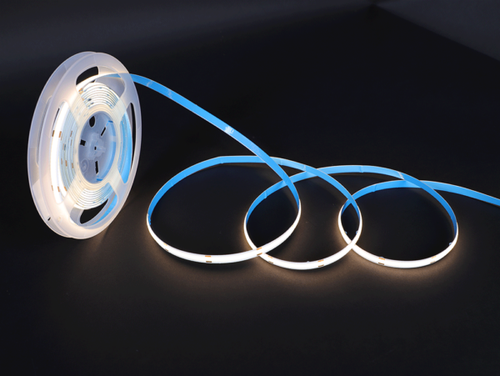

Discover COB Strip LED Lights
Technical Specifications
MOUNTING:
Strip does not come with double adhesive tape pre-mounted. Such is available as an accessory and sold separate.
- Input Voltage: 24V DC
- Power: 3 W/ft
- Maximum Connecting Length: 16.4 ft / 5 meters
- Beam Angle: 180¡
- Light color options: Soft White 3000K and Daylight White 5000K
- CRI 90 + for True Colour Rendering
- Ambient Operating Temperature: -4¡F (-20¡C) to +104¡F (+40¡C)
- LED Operation Type: Constant Voltage
- Certification: cETLus
APPLICATIONS:Ê
- Undercabinet Lighting
- Cove Lighting
- Bathrooms
- Path and contour marking
- Decorative lights for holiday, event, show, exhibitions
DIMENSIONS:
- 7/16_ wide (10 mm); 16.4_ length (5 meters)
- 2_ (5 cm) Cuttable Increment
Suitable for Indoor and Outdoor Locations
Accessories
Silver profile with white diffuser 3.3ft (1 m) model # XC610
Black profile with black diffuser 3.3ft (1 m) model # XC610-BK
Strip Connectors
-
-
- model # LCS-0-8MM
No Wires
-
Single Connector with 6_ Wire
-
-
- model # LCS-1-8M
-
Two Connectors with 6_ Wire Between
-
-
- model # LCS-2-8MM
-
NOTE: Connectors fit inside the channel
Double sided 3M adhesive tape 5 meter
-
-
- model # 3MT-5m
-
Downloads
Spec Sheets:
- Spec Sheet: LBL-COB-384-24V-10MM-IP65
MOUNTING:
Strip does not come with double adhesive tape pre-mounted. Such is available as an accessory and sold separate.
- Input Voltage: 24V DC
- Power: 3 W/ft
- Maximum Connecting Length: 16.4 ft / 5 meters
- Beam Angle: 180¡
- Light color options: Soft White 3000K and Daylight White 5000K
- CRI 90 + for True Colour Rendering
- Ambient Operating Temperature: -4¡F (-20¡C) to +104¡F (+40¡C)
- LED Operation Type: Constant Voltage
- Certification: cETLus
APPLICATIONS:Ê
- Undercabinet Lighting
- Cove Lighting
- Bathrooms
- Path and contour marking
- Decorative lights for holiday, event, show, exhibitions
DIMENSIONS:
- 7/16_ wide (10 mm); 16.4_ length (5 meters)
- 2_ (5 cm) Cuttable Increment
Suitable for Indoor and Outdoor Locations
Discover COB Strip LED Lights
Silver profile with white diffuser 3.3ft (1 m) model # XC610
Black profile with black diffuser 3.3ft (1 m) model # XC610-BK
Strip Connectors
-
-
- model # LCS-0-8MM
No Wires
-
Single Connector with 6_ Wire
-
-
- model # LCS-1-8M
-
Two Connectors with 6_ Wire Between
-
-
- model # LCS-2-8MM
-
NOTE: Connectors fit inside the channel
Double sided 3M adhesive tape 5 meter
-
-
- model # 3MT-5m
-
Spec Sheets:
- Spec Sheet: LBL-COB-384-24V-10MM-IP65
