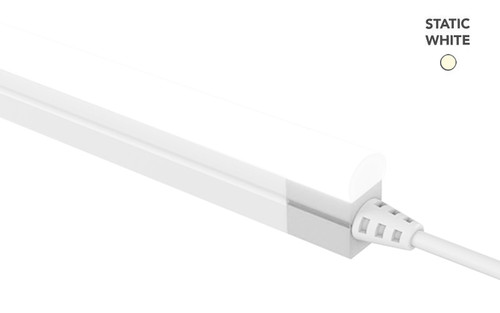

LLI Architectural Lighting LLI-N5.3W-67-DS98-RXX LED Neon Dome Profile
FEATURES & BENEFITS
Low luminosity surface mount LED Neon. Side bending only. Recommended applications: Outdoor/Indoor accent lighting, retail signage.
TECHNICAL INFORMATION
| WATTAGE | 5.3 W/ft |
| IP RATING | IP67 |
| BEND ORIENTATION | Side bending |
| HOUSING MATERIAL | Silicone |
| LUMEN OUTPUT | Red Ð 8 lm/ft Green Ð 16 lm/ft Blue Ð 4 lm/ft 3000KÊÐ 28 lm/ft 4200K Ð 30 lm/ft 5200KÊÐ 35 lm/ft |
| CRI | 80+ |
| INPUT VOLTAGE | 24VDC |
| SEGMENT LENGTH | 3.28_, not field-cuttable |
| MAXIMUM LENGTH | 16ft |
| MINIMUM BEND | 1.96_ diameter |
| CERTIFICATIONS | RoHS,ÊUL |
