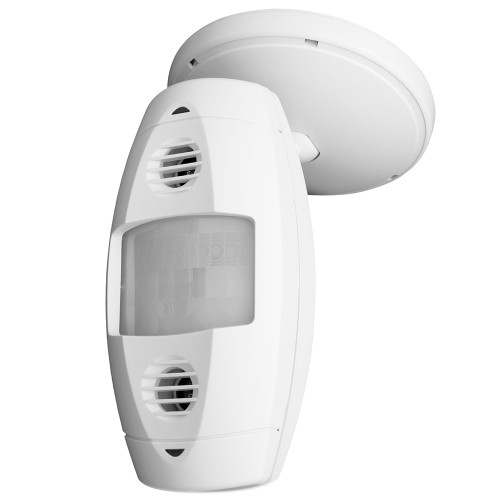

Leviton OSWWV-RIW Occupancy Sensor, Low Voltage, PIR, Wall Mount, Wideview, 2500SF, Isolated Relay, True White
Do you have a question about an
Color: True White
Feature: Wide View
Grade: Commercial
Mounting: Wall Mount
Mounting Height (Ft.): 8-10 FT
Product Line: OSWWV
Sensor Technology: Passive Infrared (PIR)
Sensor Type: Occupancy
Time Delay: 30s-30m
True White: Yes
Line Voltage: No
Output Voltage: 24 VDC active high logic control signal with short circuit protection
Power Consumption: 15mA DC, 30mA AC
Voltage: 24 VDC
Occupancy Sensor, Low Voltage, PIR, Wall Mount, Wideview, 2500SF, Isolated Relay, True White
Low Voltage Occupancy Sensor lighting control, Wall Mount, PIR, 1A 30VDC Isolated Relay, 24VAC/VDC, 2500 sq ft, Wide View, USMCA, Title 24 Compliant, True White
The OSWWV-RIW is a low-voltage infrared occupancy sensor that works with the OSPxx Series power pack, or other Class 2 power supplies, to automatically control lighting. By sensing moving infrared heat sources, the sensor automatically turns the lights ON during occupancy, maintains lights-ON and, after a time delay, turns the lights OFF when the space is vacated.
Do you have a question about an
occupancy sensor or vacancy sensor?
Contact us to learn more.
- Combines PIR Technology with a microprocessor based digital architecture. By eliminating false triggering, the sensor provides a trouble-free "install and forget" solution for lighting control
- Self-adjusting settings continuously analyze and adjust infrared sensitivity, timer operation, and long term performance
- Adjustable swivel neck rotates 80 degrees vertically and 60 degrees horizontally. Can be used for ceiling or wall mounting
- Ambient light override prevents lights from turning on when there is ample natural light
- Self-Adjusting delayed-off time interval settings for 30 seconds to 30 minutes. Compensates for real-time occupancy patterns- preventing unnecessary on/off switching
- Non-volitile memory preserves all automatic and manual settings during power outages.
- Fast, simple installation using 3 color-coded low-voltage wires and a single mounting post
- Excellent 5-Year Limited warranty
- Typical Applications: Work Areas, Storage Areas, Store Rooms, Indoor Garages, Open Office Area with pendant fixtures, Multi-Purpose Areas, Cafeterias, Gymnasiums and Stairwells
Product Features
Application: Cafeterias, Parking garages, Hallways, Large open areas, Warehouses, Conference roomsColor: True White
Feature: Wide View
Grade: Commercial
Mounting: Wall Mount
Mounting Height (Ft.): 8-10 FT
Product Line: OSWWV
Sensor Technology: Passive Infrared (PIR)
Sensor Type: Occupancy
Time Delay: 30s-30m
True White: Yes
Electrical Specifications
Isolated Relay: 1A @ 30VAC/VDCLine Voltage: No
Output Voltage: 24 VDC active high logic control signal with short circuit protection
Power Consumption: 15mA DC, 30mA AC
Voltage: 24 VDC
Voltage Type: Low Voltage
Relay Type: Isolated Relay
Size: Height 6.43" (163.32mm), Depth 4.67" (118.62mm), Sensor Width 2.80" (71.12mm), Base Width 4.23" (107.44mm)
Pattern: 110¡
Relative Humidity: 0% to 95% non-condensing
Mechanical Specifications
Mounting Type: Wall MountRelay Type: Isolated Relay
Size: Height 6.43" (163.32mm), Depth 4.67" (118.62mm), Sensor Width 2.80" (71.12mm), Base Width 4.23" (107.44mm)
Standards and Certifications
Listings: cUL/US Certified, can be used to comply with ASHRAE 90.1 and Title 24, Part 6 occupancy sensing requirementsPerformance Specifications
Coverage (Sq.Ft.): 2500Pattern: 110¡
Environmental Specifications
Operating Temperature: 32¡ to 104¡F (0¡ to 40¡C)Relative Humidity: 0% to 95% non-condensing
Type
Product Type: Occupancy SensorWarranty
Warranty: 5-Year Limited
