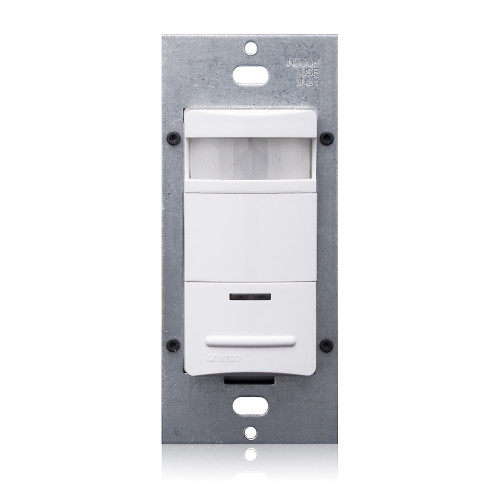

Occupancy Sensor, PIR, Wall Switch, 1600SF, 120-277V, White, Decora¨

• Fits in standard wallbox and replaces single-pole wall switch. Gangable with other units.
• Low-profile design eliminates obtrusive appearance. Elegant Decora wallplates complement any interior for sleek aesthetics; uses Decora wallplates and coordinates with LevitonÕs popular line of Decora wiring devices.
• 180¡ field-of-view provides approximately 1600 square feet (149 square meters) of coverage suitable for small offices, conference rooms, lounges and a variety of commercial areas.
• Convenient pushbutton provides manual-ON/OFF light switching at any time.
• Two dual element PIR sensors used to widen detection range.
• Vandal resistant PIR lens.
• Horizontal field-of-view may be adjusted between 180¡ and 180¡ of arc by using integral blinders located on either side of the lens. No masking tape required.
• Manual-ON/Auto-OFF mode for installations where manual-ON switching is required but auto-OFF switching is still desired for CA Title 24 energy savings.
• To comply with CA Title 24, red LED indicator light flashes when sensor detects motion to verify detection is active.
• Time Delay adjustment for delayed-OFF time settings of 30 seconds (for walking test), 10 minutes,
• 20 minutes, and 30 minutes. Allows customized adjustments to maximize energy savings.
• Vacancy confirmation - when the time out expires and the lights turn OFF a 30 second vacancy confirmation exists to turn the lights back ON.
• Presentation Mode feature for slide or film presentations allows push buttons to turn lights OFF and keep them OFF while the room is occupied.
• One unit can be used for 120-230-277V lighting. Compatible with LED drivers and electronic and magnetic ballasts.
• No neutral design is optimal for retrofit applications
