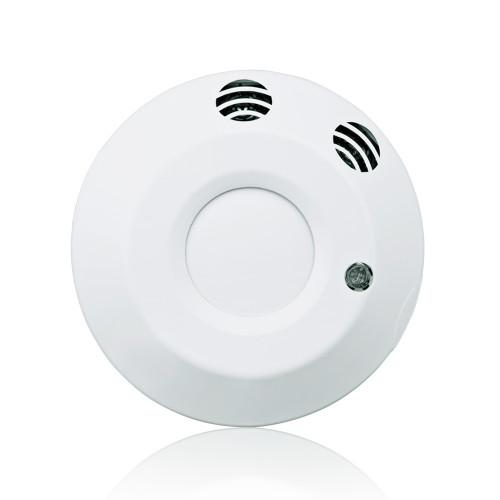

Leviton ODC10-UDW Occupancy Sensor with Integrated Photocell, Line Voltage, Ultrasonic, Ceiling Mount, 1000SF, 120-277V, Extended Range Lens installed, Provoltª
Do you have a question about an
Color: White
Feature: Line Voltage
Grade: Commercial
Mounting: Ceiling Mount
Product Line: Provolt
Sensor Technology: Ultrasonic (US)
Sensor Type: Occupancy, Photocell
Frequency: 50/60Hz
Load Rating: 120V, 50/60Hz: 8A, Electronic Ballast, 800W/VA, Tungsten, Ballast, 1/4 HP Motor - 230V, 50Hz: 6A/6AX, Electronic Ballast, Magnetic Ballast, Tungsten 1200W/VA, 1/3 HP Motor - 277V, 50/60Hz: 5A, Electronic Ballast, 1200VA, 1/3 HP Motor
Neutral Wire Connection: Required
Occupancy Sensor with Integrated Photocell, Line Voltage, Ultrasonic, Ceiling Mount, 1000SF, 120-277V, Extended Range Lens installed, Provoltª
Occupancy Sensor with Photocell, Provoltª lighting control, Line Voltage, 8'-12' Ceiling Mounted, Ultrasonic, 1000 sq ft, Daylighting, Auto-Calibration, 120-277V AC/CA 50/60HZ. UL/CE, RoHS & CEC Title 20/24 compliant. Color: White.
The Leviton Provoltª Series combine line voltage occupancy sensors and photocells into a self-contained unit. The integrated design alleviates the need for separate power pack and occupancy sensor wiring making it a low-cost, efficient energy solution for new construction and retrofits.
Do you have a question about an
occupancy sensor or vacancy sensor?
Contact us to learn more.
- Utilizes sensors which emit non-audible sound waves and sense movement. Any movement within the sensor's field-of-view causes a shift in the original emitted frequency. The sensor identifies the change as movement and controls light accordingly. U/S models are immune to external ultrasonic signals from other sources such as white-boards delivering uninterrupted performance.
- Auto-Adapting: Time delay and sensitivity are continually adjusted to occupancy pattern of use
- Configurable for Manual ON/Auto OFF or Auto ON/Auto OFF
- Delayed OFF Timer: The sensor will turn lights OFF if no motion is detected after a specified time
- Exclusive Walk-through Feature: Provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
- Time delay and saved settings are protected during power outages and will return to the last known state
- Output short circuit protection
- Industry-exclusive self-configuring local manual switch input: Momentary or maintained switches are supported
- Presentation Mode feature for slide or film presentations allows push buttons to turn lights OFF and keep them OFF while the room is occupied
- Adjustable Time Delay: 30s, 5min, 10min, 20min, 30min
- Test Mode for simplified commissioning
- Manual Switch and Emergency Override are Class 1 or Class 2 circuits. Class 2 circuits provided for flexibility
- Industry-exclusive Òfail-safeÓ circuitry: In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates life safety concerns
- Industry-exclusive H.I.S. (High Inrush Stability) technology designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service
- Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays
- Green Visual LED indicator - Blinks during U/S detection and is solid during auto-calibration
- Yellow Visual LED indicator - Blinks during test mode; solid with emergency/BMS input
- Blue Visual LED indicator - Blinks when knob settings are changed and during photocell override
Product Features
Application: Code Compliance, Auto ON/Auto OFF, Manual ON/Auto OFFColor: White
Feature: Line Voltage
Grade: Commercial
Mounting: Ceiling Mount
Product Line: Provolt
Sensor Technology: Ultrasonic (US)
Sensor Type: Occupancy, Photocell
Performance Specifications
Coverage (Sq.Ft.): 1000Electrical Specifications
Current Consumption: 60-30maFrequency: 50/60Hz
Load Rating: 120V, 50/60Hz: 8A, Electronic Ballast, 800W/VA, Tungsten, Ballast, 1/4 HP Motor - 230V, 50Hz: 6A/6AX, Electronic Ballast, Magnetic Ballast, Tungsten 1200W/VA, 1/3 HP Motor - 277V, 50/60Hz: 5A, Electronic Ballast, 1200VA, 1/3 HP Motor
Neutral Wire Connection: Required
Voltage: 120/230/277 VAC
Title 24 Compliant: Yes
Size: Width 4.80" (121.92mm), Depth 2.27" (57.79mm)
Storage Temperature Range: -15¡ to 160¡F (-26¡ to 71¡C)
Standards and Certifications
Listings: Can be used to comply with ASHRAE 90.1 and Title 24, Part 6 occupancy/vacancy sensing, automatic shut off and daylight harvesting requirements, UL 773A (Occupancy Standard), UL 924 (Emergency Equipment), cUL Listed, CE compliant, NOM Certified, RoHS compliant, NY LLC48 compliantTitle 24 Compliant: Yes
Mechanical Specifications
Mounting Type: Ceiling MountSize: Width 4.80" (121.92mm), Depth 2.27" (57.79mm)
Environmental Specifications
Relative Humidity: 0% to 90% non-condensingStorage Temperature Range: -15¡ to 160¡F (-26¡ to 71¡C)
Type
Product Type: Occupancy Sensor and PhotocellWarranty
Warranty: 5-Year Limited
