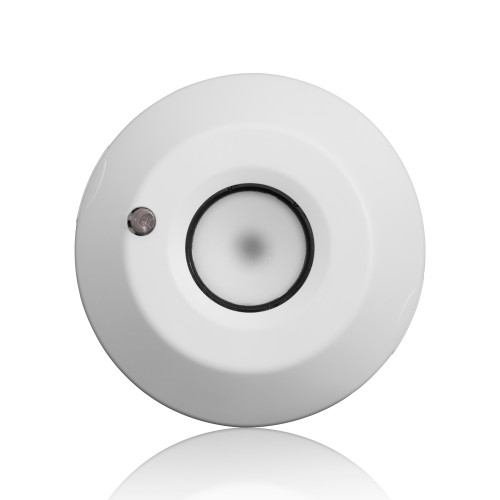

Leviton ODC0P-D0W Photocell, Low Voltage, 0-10V Dimming
Voltage Type: Low Voltage
Product Line: Photocell
Product Type: Indoor Photocell
Relative Humidity: 20% to 90% non-condensing
Photocell, Low Voltage, 0-10V Dimming
Photocell, Dimming, Set/Off, Fade Rate: 3 Min (MFG Range 1-1600FC), Title 24 Compliant, ASHRAE 90.1 Compliant
The Leviton ODC0P-D0W is an interior low voltage photocell capable of continually dimming between 1-10VDC based on the amount of natural light contribution. It is a lowpower, high-sensitivity mini-daylight harvesting system for precise monitoring of either task or ambient light levels.
Do you have any questions about photocells?
Contact us to learn more.
- Dimmed lighting at a desired daylight design level offers greater energy savings and comfort and improved energy efficiency
- Leviton-exclusive, patented Auto-Calibrationª eliminates the need for configuring labor costs during daylight harvesting configuration
- Industry-exclusive fail-safe circuitry: in the event of product failure, return-to-closed feature causes the relay to default to ON which eliminates life safety concerns
- Fade rate time setting 3-30 minutes
- Controls 1-10V sinking ballast
- No additional power supply required for 1-10V sinking operation
- Dim to OFF Ñ over DDL for 30 seconds then lights OFF
- Test Mode Ñ 30 second fade rate for 15 minutes then auto exit
- Provides ultra-convenient, hands-free lighting control
- Measures light from any source in the visible spectrum within a 60¼ cone at 8-12Õ mounting height
- Provides continual measurements to control the lighting
- Photocell sensor Mounts on ceiling Ñ surface mount or low-profile flush mount
- LED status indicators for ease of installation
Electrical Specifications
Input Voltage: 12 - 24VDCVoltage Type: Low Voltage
Product Features
Operating Temperature: 0¡C to 55¡CProduct Line: Photocell
Product Type: Indoor Photocell
Relative Humidity: 20% to 90% non-condensing
Environmental Specifications
Foot Candle Level: 1-1,600 FC (10-16,000 LUX) Operating Temperature: 0¡C to 55¡C
Relative Humidity: 20% to 90% non-condensing
Foot Candle Level: 1-1,600 FC (10-16,000 LUX)
Standards and Certifications: UL 916 Listed
Standards and Certifications: UL 916 Listed
Relative Humidity: 20% to 90% non-condensing
Performance Specifications
FCC: CompliantFoot Candle Level: 1-1,600 FC (10-16,000 LUX)
Standards and Certifications: UL 916 Listed
Standards and Certifications
FCC: CompliantStandards and Certifications: UL 916 Listed
