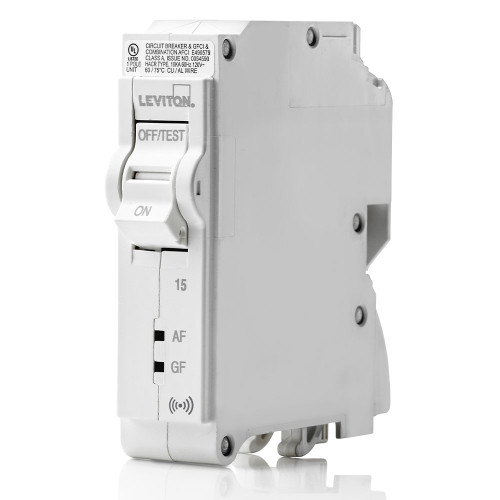

15A 1-Pole AFCI Hydraulic Magnetic Branch Circuit Breaker

15A 1-Pole AFCI Branch Circuit Breaker with Hydraulic Magnetic Trip Technology and Plug-On Installation. 120V

EASY Ð Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
HYDRAULIC MAGNETIC Ð Precision trip technology ensures that the main breaker operates as intended from -40¡C to 85¡C (-40¡F to 185¡F) without re-rating
SAFE Ð Leviton GFCI, AFCI and dual-function circuit breakers feature patented reset lockout technology, and will not reset if ground or arc fault protection is comprimised
INTUITIVE Ð LEDs communicate trip condition and type of fault, and remain illuminated even when tripped

*Designed for Leviton Load Centers only

Product Features

Dimensions: 3.9" H x 1.0" W x 3.1" D
Smart: No
Warranty: Limited 10-Year Warranty (Mechanical), Limited 2-Year Warranty (Electronic)
Weight: 0.42 lbs.
Wiring: All Plug-on

Electrical Specifications

Amperage: 15 A
Breaker Technology: Hydraulic Magnetic
Pole: 1
Short Circuit Current Rating: 10 KA

Type: AFCI
Voltage: 120 VAC

Standards & Certifications

CSA-C22.2 No. 5-02: Yes
EMC Compatibility: Yes
FCC: Yes
RoHS: Yes
UL 489: Yes
UL1699.A: Yes
