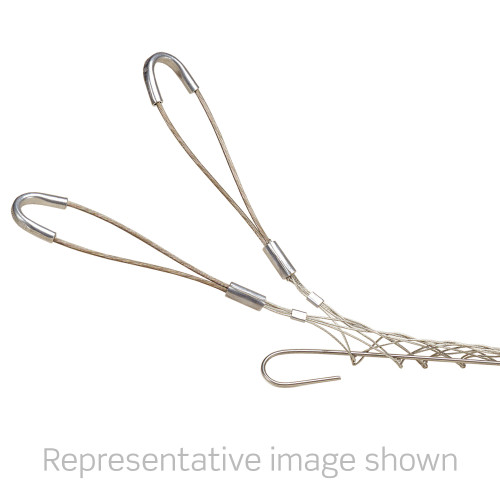

Leviton L9654-100 Support Grip, 1.00-1.25"
Bale Length: 5 in (127 mm)
Cable Range: 1.00 - 1.25 in (25 - 31 mm)
Duty: Standard
Eye Type: Double
Mesh Length: 12.5 in (317 mm)
Bale Length: 5 in (127 mm)
Cable Range: 1.00 - 1.25 in (25 - 31 mm)
Duty: Standard
Eye Type: Double
Mesh Length: 12.5 in (317 mm)
Support Grip, 1.00-1.25"
Support, Double Eye Split Mesh Rod Closing Cable Support Grip, 1.00-1.25", 304 Stainless Steel- Breakload is 1,610 LB
- Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for todayÕs demanding wire mesh applications
- Support grips distribute the weight of the vertical or sloping runs of electrical and fiber optic cable, metal rods, tubing or hose over the entire length of the grip so the cable is not damaged
- Use of support grips avoids stress on cable connections and provides needed support for vertically hung cables
Material Specifications
Mesh Material: 304 SSMechanical Specifications
Approx. Break Strength: 1610 lbs (730 kg)Bale Length: 5 in (127 mm)
Cable Range: 1.00 - 1.25 in (25 - 31 mm)
Duty: Standard
Eye Type: Double
Mesh Length: 12.5 in (317 mm)
Mesh Style: Open - Rod Closing
Standards and Certifications: UL
Weave: Single Weave
Workload Safety Factor (lbs): 161 lbs (73 kg)
Standards and Certifications: UL
Weave: Single Weave
Workload Safety Factor (lbs): 161 lbs (73 kg)
Product Features
Device Type: Support GripWarranty
Warranty: 1-Year LimitedMaterial Specifications
Mesh Material: 304 SSMechanical Specifications
Approx. Break Strength: 1610 lbs (730 kg)Bale Length: 5 in (127 mm)
Cable Range: 1.00 - 1.25 in (25 - 31 mm)
Duty: Standard
Eye Type: Double
Mesh Length: 12.5 in (317 mm)
Mesh Style: Open - Rod Closing
Standards and Certifications: UL
Weave: Single Weave
Workload Safety Factor (lbs): 161 lbs (73 kg)
Standards and Certifications: UL
Weave: Single Weave
Workload Safety Factor (lbs): 161 lbs (73 kg)
Product Features
Device Type: Support GripWarranty
Warranty: 1-Year Limited
