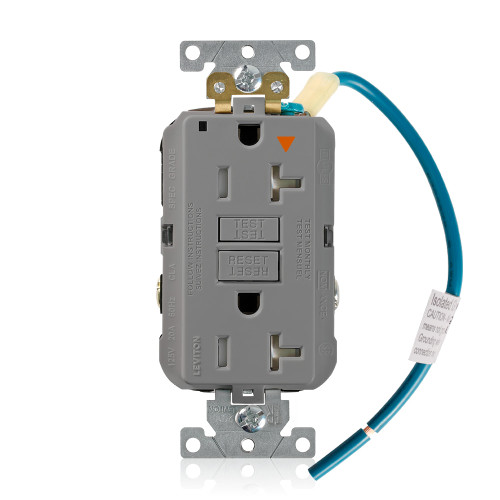

Leviton GFTR2-5LE SmartlockPro GFCI Receptacle
Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Grounding: Self-Grounding
Pole: 2
Short Circuit Current Rating: 10kA
Temperature Rise: Max 30C after 250 cycles overload at 200 percent rated current
Trip Level: Class A, 5mA plus or minus 1mA
Voltage: 125 VAC
Wire: 3
Operating Temperature: -35C to +66C
Face Material: PBT
Ground Clips: Brass
Line Contacts: Brass
Shutter Mechanism: Delrin¨ Acetal
Strap Material: Galvanized Steel
Product ID: Ratings are permenantly marked on device
Screw Terminal Torque: 14-18 in-lbs
Termination: Pre-Wired Leads
Wire Leads: #6" long 12 AWG TEW line & load leads plus ground leads
Color: Black
Device Type: Duplex Receptacle Outlet
Feature: Tamper-Resistant, Power Indication
Function: GFCI
Grade: Extra Heavy-Duty Hospital Grade
NEMA: 5-20R
Applicable Standards: UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Certification/Listing: UL, CSA, NOM-ANCE
NEMA: WD-1 & WD-6
Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Grounding: Self-Grounding
Pole: 2
Short Circuit Current Rating: 10kA
Temperature Rise: Max 30C after 250 cycles overload at 200 percent rated current
Trip Level: Class A, 5mA plus or minus 1mA
Voltage: 125 VAC
Wire: 3
Operating Temperature: -35C to +66C
Face Material: PBT
Ground Clips: Brass
Line Contacts: Brass
Shutter Mechanism: Delrin¨ Acetal
Strap Material: Galvanized Steel
Product ID: Ratings are permenantly marked on device
Screw Terminal Torque: 14-18 in-lbs
Termination: Pre-Wired Leads
Wire Leads: #6" long 12 AWG TEW line & load leads plus ground leads
Color: Black
Device Type: Duplex Receptacle Outlet
Feature: Tamper-Resistant, Power Indication
Function: GFCI
Grade: Extra Heavy-Duty Hospital Grade
NEMA: 5-20R
Applicable Standards: UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Certification/Listing: UL, CSA, NOM-ANCE
NEMA: WD-1 & WD-6
SmartlockPro GFCI Receptacle
SmartlockPro GFCI Duplex Receptacle Outlet, Extra Heavy-Duty Industrial Specification Grade, Tamper-Resistant, Power Indication, 20 Amp, 125 Volt, Pre-Wired Leads, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Black
AC Horsepower Ratings
At Rated Voltage: 1 HPElectrical Specifications
Amperage: 20 ADielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Grounding: Self-Grounding
Pole: 2
Short Circuit Current Rating: 10kA
Temperature Rise: Max 30C after 250 cycles overload at 200 percent rated current
Trip Level: Class A, 5mA plus or minus 1mA
Voltage: 125 VAC
Wire: 3
Environmental Specifications
Flammability: Rated V-0 per UL 94Operating Temperature: -35C to +66C
Material Specifications
Body Material: PolycarbonateFace Material: PBT
Ground Clips: Brass
Line Contacts: Brass
Shutter Mechanism: Delrin¨ Acetal
Strap Material: Galvanized Steel
Mechanical Specifications
Lead Identification: Black-Hot, White-Neutral, Green-GroundProduct ID: Ratings are permenantly marked on device
Screw Terminal Torque: 14-18 in-lbs
Termination: Pre-Wired Leads
Wire Leads: #6" long 12 AWG TEW line & load leads plus ground leads
Product Features
Brand: SmartlockProColor: Black
Device Type: Duplex Receptacle Outlet
Feature: Tamper-Resistant, Power Indication
Function: GFCI
Grade: Extra Heavy-Duty Hospital Grade
NEMA: 5-20R
Standards and Certifications
ANSI: C-73Applicable Standards: UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Certification/Listing: UL, CSA, NOM-ANCE
NEMA: WD-1 & WD-6
Warranty
Warranty: 2-Year LimitedAC Horsepower Ratings
At Rated Voltage: 1 HPElectrical Specifications
Amperage: 20 ADielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Grounding: Self-Grounding
Pole: 2
Short Circuit Current Rating: 10kA
Temperature Rise: Max 30C after 250 cycles overload at 200 percent rated current
Trip Level: Class A, 5mA plus or minus 1mA
Voltage: 125 VAC
Wire: 3
Environmental Specifications
Flammability: Rated V-0 per UL 94Operating Temperature: -35C to +66C
Material Specifications
Body Material: PolycarbonateFace Material: PBT
Ground Clips: Brass
Line Contacts: Brass
Shutter Mechanism: Delrin¨ Acetal
Strap Material: Galvanized Steel
Mechanical Specifications
Lead Identification: Black-Hot, White-Neutral, Green-GroundProduct ID: Ratings are permenantly marked on device
Screw Terminal Torque: 14-18 in-lbs
Termination: Pre-Wired Leads
Wire Leads: #6" long 12 AWG TEW line & load leads plus ground leads
Product Features
Brand: SmartlockProColor: Black
Device Type: Duplex Receptacle Outlet
Feature: Tamper-Resistant, Power Indication
Function: GFCI
Grade: Extra Heavy-Duty Hospital Grade
NEMA: 5-20R
Standards and Certifications
ANSI: C-73Applicable Standards: UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Certification/Listing: UL, CSA, NOM-ANCE
NEMA: WD-1 & WD-6
Warranty
Warranty: 2-Year Limited
