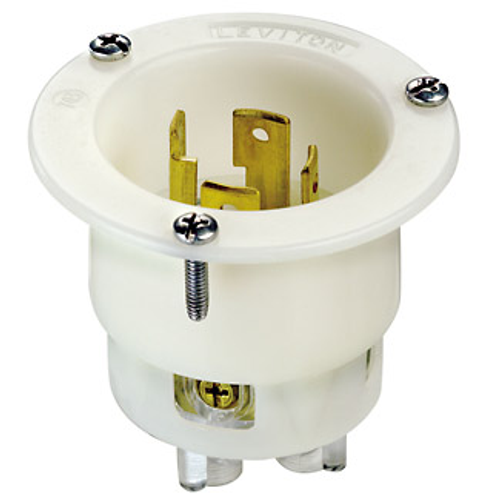

Leviton 2745 30 Amp, 600 Volt 3-Phase, NEMA L17-30P, 3P, 4W, Flanged Inlet Locking Receptacle, Industrial Grade, Grounding - WHITE
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Phase: 3-Phase
Pole: 3
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 600 VAC
Wire: 4
Flammability: Rated V-2 per UL 94
Operating Temperature: -40¡C to 60¡C
Color: White
Face Material: Nylon
Grounding Screw: Brass 8-32
Line Contacts: Solid Brass
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Phase: 3-Phase
Pole: 3
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 600 VAC
Wire: 4
Flammability: Rated V-2 per UL 94
Operating Temperature: -40¡C to 60¡C
Color: White
Face Material: Nylon
Grounding Screw: Brass 8-32
Line Contacts: Solid Brass
30 Amp, 600 Volt 3-Phase, NEMA L17-30P, 3P, 4W, Flanged Inlet Locking Receptacle, Industrial Grade, Grounding - WHITE
LevitonÕs industry leading locking devices, such as our Black & White line of industrial grade plugs and connectors and our V-0-Max line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
AC Horsepower Ratings
At Rated Voltage: N/AElectrical Specifications
Amperage: 30 ACurrent Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Phase: 3-Phase
Pole: 3
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 600 VAC
Wire: 4
Environmental Specifications
Environment: DryFlammability: Rated V-2 per UL 94
Operating Temperature: -40¡C to 60¡C
Material Specifications
Body Material: NylonColor: White
Face Material: Nylon
Grounding Screw: Brass 8-32
Line Contacts: Solid Brass
Strap Material: Thermoplastic Nylon
Terminal Screws: Brass 10-32
Screw Terminal Torque: 10-14 in-lbs
Terminal Accom.: 18-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back
Color: White
Device Type: Locking Flanged Inlet
NEMA: L17-30P
CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL Fed Spec WC-596: File E13393
UL498: File E13393
Warranty: Limited Lifetime Warranty Warranty
Terminal Screws: Brass 10-32
Mechanical Specifications
Product ID: Ratings and NEMA I.D. permanently marked on deviceScrew Terminal Torque: 10-14 in-lbs
Terminal Accom.: 18-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back
Product Features
Brand: Black and WhiteColor: White
Device Type: Locking Flanged Inlet
NEMA: L17-30P
Standards and Certifications
ANSI: C-73CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL Fed Spec WC-596: File E13393
UL498: File E13393
Warranty: Limited Lifetime Warranty Warranty
