| Compliance | |
| UL Listed | Suitable for damp locations |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80. |
| Performance | |
| Lifespan | 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Wattage Equivalency | Equivalent to (4)F32T8 or (4)F28T5 |
| LED Characteristics | |
| LEDs | Long-life, high-efficacy, surface-mount LEDs; binned and mixed for uniform light output and color |
| Color Uniformity | RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. |
| Color Stability | LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period |
| Construction | |
| Maximum Ambient Temperature | Suitable for use in up to -30°C (-22°F) to 50°C(122°F) |
| IC Rated | Suitable for insulated ceilings |
| Lens | Frosted polystyrene |
| Housing | Lightweight aluminum housing, steel pan and junction box |
| Installation | Standard integral T-bar clips secure the fixture to T-bars and prevent T-system separation |
| Finish | Formulated for high durability and long-lasting color |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Installation | |
| Mounting | Recessed ceiling |
| Electrical | |
| Driver | Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.1A, 208V: 0.06A, 240V: 0.05A, 277V: 0.04A |
| THD | 8% at 120V, 10.1% at 277V |
| Power Factor | 99.5% at 120V, 93.7% at 277V |
| Battery Backup | Battery backup will operate the LED Lamp for 90 minutes if power fails. Wired for 120V. |
| Battery Backup Light Loss Factor | 0.825 |

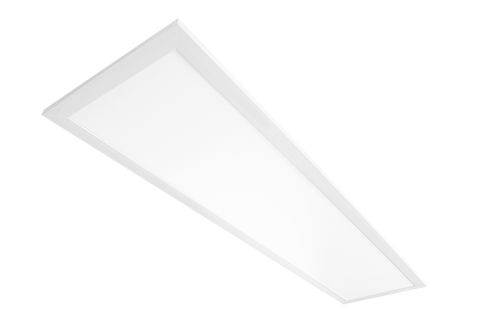

EZPANHE1X4-12YN/D10/E2
RAB Lighting
$253.00
- SKU:
- EZPANHE1X4-12YN/D10/E2
- UPC:
- 19813706603
- Availability:
- Usually ships within 1 week.
- Weight:
- 11.80 LBS
- Shipping:
- Calculated at Checkout
- voltage:
- 277v
- sub-tech:
- LED
- Spec Sheet:
- Spec Sheet
- Instructions:
- Instructions
- Watts:
- 12W
- Color Temp:
- 3500K (Warm Neutral)
- Lumens:
- 1,586 lm
- Efficacy:
- 126.9 lm/W
- Color Accuracy:
- 82 CRI
- L70:
- 100,000 Hours
- Type:
- Constant Current
- V120:
- 0.1A
- V208:
- 0.06A
- V240:
- 0.05A
- V277:
- 0.04A
- Input Watts:
- 12.5W
