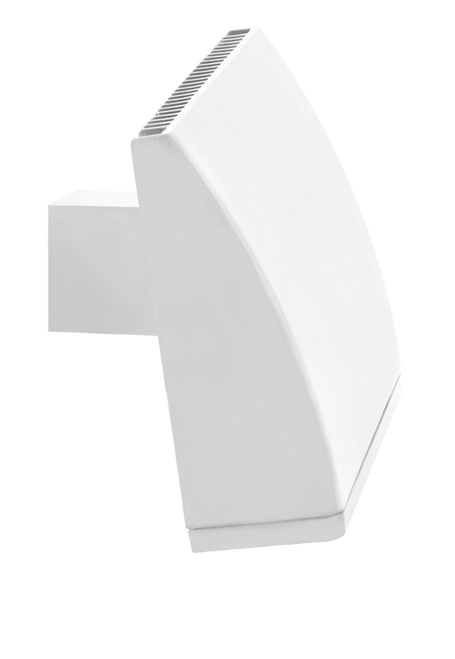

Shop RAB Lighting ALEDC80YW/D10 Light Bulbs & Fixtures

Description

Electrical
Drivers	Constant Current, Class 2, 2000mA, 100-277V, 50-60Hz, 1.1A, Power Factor 99%
Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD	13.33% at 120V
Power Factor	99.5% at 120V, 93.4% at 277V
Surge Protection	6kV
Compliance
UL Listed	Suitable for wet locations. Suitable for mounting within 4 ft of the ground.
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan	100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency	Equivalent to 320W Pulse Start Metal Halide
Construction
IES Classification	The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It is intended to be located near the side of the area, allowing the light to project outward and fill the area.
Ambient Temperature	Suitable for use in up to 40°C (104°F)
Cold Weather Starting	The minimum starting temperature is -40°C (-40°F)
Thermal Management	Cast aluminum Thermal Management system for optimal heat sinking. The ALED is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature.
Housing	Precision die-cast aluminum housing, lens frame
Arm	Die-cast aluminum with wiring access plate
Reflector	Specular vacuum-metallized polycarbonate
Gaskets	High-temperature silicone
EPA	1 Fixture: 1.52 Fixtures at 90°: 2.42 Fixtures at 180°: 2.93 Fixtures at 90°: 3.24 Fixtures at 90°: 3.2
Finish	Formulated for high durability and long-lasting color
Green Technology	Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs	Constant Current, Class 2, 2000mA, 100-277V, 50-60Hz, 1.1A, Power Factor 99%
Color Consistency	3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability	LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity	RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Optical
BUG Rating	B1 U1 G1

ALEDC80YW/D10
