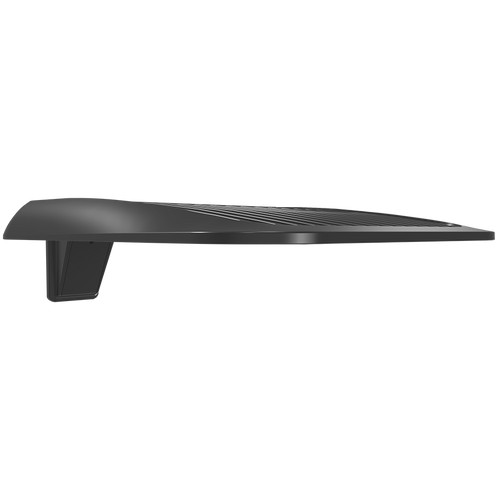

A34T3LWM

Description

Field Adjustability
Field Adjustable	Field Adjustable Light Output: 100W/80W/50W (factory default 80W)Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed	Suitable for wet locations
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating	Ingress protection rating of IP65 for dust and water
DLC Listed	This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: S-MFY4MY
Performance
Lifespan	100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency	250W: Replaces up to 1,000W Metal Halide (MH) or 600W High Pressure Sodium (HPS)200W: Replaces up to 750W Metal Halide (MH) or 600W High Pressure Sodium (HPS) 150W: Replaces up to 750W Metal Halide (MH) or 400W High Pressure Sodium (HPS)
Electrical
Driver	250W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 2.09A, 208V: 1.20A, 240V: 1.10A, 277V: 0.90A 200W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 1.66A, 208V: 1.10A, 240V: 0.95A, 277V: 0.74A 150W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 1.26A, 208V: 0.80A, 240V: 0.70A, 277V: 0.59A
Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Surge Protection	L-L: 6kV; L/N-G: 10kV10kV Surge suppressor in addition to surge built into the driver.
Photocell	Integrated photocell included with on/off switch
Construction
IES Classification	The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It is intended to be located near the side of the area, allowing the light to project outward and fill the area.
Cold Weather Starting	The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature	Suitable for use in up to 40°C (104°F)
Lens	Clear polycarbonate lens
Housing	Die-cast aluminum housing, lens frame and mounting arm
Effective Projected Area	EPA = 0.5
Vibration Rating	2G
Finish	Formulated for high durability and long-lasting color
Green Technology	Includes recycled plastic and RoHS-compliant components.
LED Characteristics
LEDs	Long-life, high-efficiency, surface-mount LEDs
Color Uniformity	RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting	Wall mount
Optical
BUG Rating	250W: B4 U0 G4 200W: B3 U0 G3 150W: B3 U0 G3
