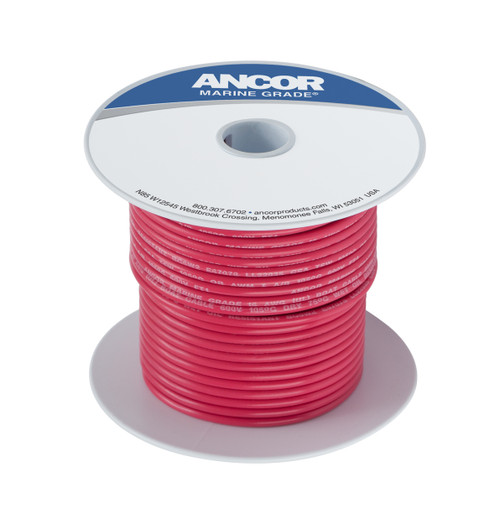

Automotive Primary Wires are available from Allied Wire and Cable. Primary wire is the most widely utilized general purpose wire. The smooth surface of Primary Wire makes it perfect for drawing through wire looms and other wiring management systems. Automotive Primary Wire is built to withstand the rigors of a wide range of automotive applications. Both commercial and leisure vehicles can benefit from our Primary Wire. It's a stranded copper wire that's commonly utilized in automobile (and occasionally maritime) applications. In other words, except for special-purpose wirings like battery cables and spark plug wires, it's the type of wire used for most of the wiring in your car.
Key Features
- It is a frequently utilized and cost-effective wire.
- The insulation jacket is usually PVC and is smooth and brightly colored (polyvinyl chloride).
- It can withstand larger fatigues.
- It has a typical wall thickness and is for conventional circuit wiring.
- It has heat and abrasion resistance.
Specifications:
- SKU: 1-102825
- UPC: 091887100372
- Weight: 9.00 LBS
- Length: 250'
- Color: Red
- Manufacturer Part Number (MPN): 102825
MARINE GRADE 16 AWG (1MM2) WIRE SPECIFICATIONS
| Nominal O.D. | 1/8" (3.2mm) |
| Wt./1000' | 16 lbs. (7.3 kg) |
| Stranding | 26 of 30 AWG |
| Cir. Mil Area | 2600 |
| Square mm | 1.31 |
| Ohms/1000' | 4 |
This product replaces:
- 639-102825, 91887100372
