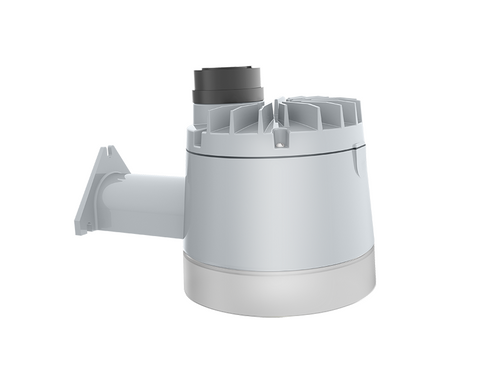

RAB Lighting YBLED60Y/D10/5PR Yardblaster 60W LED 3K 5Pin Recepticle 0-10V Dim Wall, 3000K Warm, 100000 Hour Life, YBLED60Y/D10/5PR or RAB

YBLED60Y/D10/5PR

RAB Lighting

$258.00
(No reviews yet) Write a Review
SKU:
YBLED60Y/D10/5PR
UPC:
19813681863
Availability:
Usually ships within 1 week.
Weight:
8.60 LBS
Shipping:
Calculated at Checkout
sub-tech:
LED
Kelvin:
3000K
Spec Sheet:
Spec Sheet
Watts:
60W
Color Temp:
3000K (Warm)
Lumens:
7,340 lm
Efficacy:
132.3 lm/W
Color Accuracy:
72 CRI
L70:
100,000 Hours
Type:
Constant Current
V120:
0.52A
V208:
0.30A
V240:
0.26A
V277:
0.22A
Input Watts:
55.5W
sub-tech:
LED
Kelvin:
3000K
Spec Sheet:
Spec Sheet
Watts:
60W
Color Temp:
3000K (Warm)
Lumens:
7,340 lm
Efficacy:
132.3 lm/W
Color Accuracy:
72 CRI
L70:
100,000 Hours
Type:
Constant Current
V120:
0.52A
V208:
0.30A
V240:
0.26A
V277:
0.22A
Input Watts:
55.5W
Adding to cart… The item has been added
Compliance
UL ListedSuitable for dry and wet locations
IESNA LM-79 & LM-80 TestingRAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP RatingIngress protection rating of IP66 for dust and water
Electrical
DriverConstant Current, Class 2, 120V-277V, 50/60 Hz, 950mA, 120V: 0.6A, 208V: 0.321A, 240V: 0.278A, 277V: 0.223
THD9.3% at 120V, 8.5% at 277V
Power Factor99.5% at 120V, 90% at 277V
5-Pin ReceptacleANSI C136.41 5-pin receptacle, compatible with wireless control systems
Surge Protection4 kV Line-Line, 6 kV Line-Earth
LED Characteristics
LEDsLong-life, high-efficiency, surface-mount LEDs
Color StabilityLED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color UniformityRAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage EquivalencyEquivalent to 200 HPS
Construction
IES ClassificationThe Type V distribution produces light in a wide and uniform 360° pattern that is perfect for large outdoor areas such as parking lots, corporate parks and retail settings
Cold Weather StartingThe minimum starting temperature is -40°C (-40°F)
HousingPrecision die-cast aluminum housing and arm
ReflectorHigh-reflectance white paint
LensFlat polycarbonate lens
GasketsHigh-temperature silicone
FinishFormulated for high durability and long-lasting color
Green TechnologyMercury and UV free. RoHS-compliant components.
Optical
BUG RatingB2 U3 G2
Installation
MountingMounts on wall or existing arm/pole YARM24 (1 5/8" diameter pipe)
