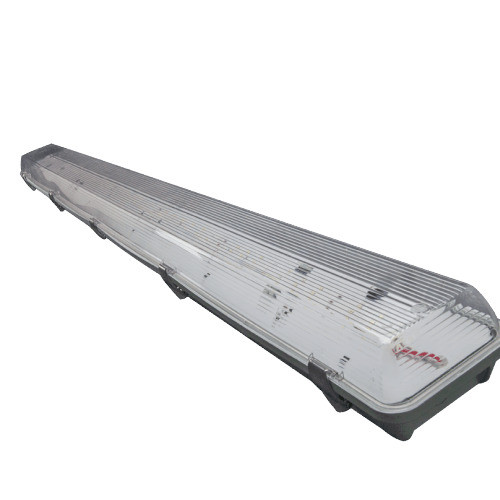

Sunled Industries Challenger CLS Vapor Tight LED Batten 24-100W/3,120-13,000Lm
Challenger CLS Series
Vapor Tight LED Batten
Experience the savings. See the value. The Challenger CLS Series is an easy-to-install, low-cost, linear LED fixture for wet locations and stands up to dust and dirt with its IP66 rating.
The Challenger CLS vapor tight series from Sunled Industries is cost-efficient, wet-location listed and designed specifically for demanding environments.
Its multitude of sizes from 2 to 6ft and emergency options establish the CLS LED vapor tight fixture as an inexpensive solution for outdoor venues, canopies, locker rooms, passageways and under eave applications
Ê
Ê
Ê
Product Code
Example Challenger CLS cat. 2.40.3.PC.S.EM1/MS
ÊMODEL NO | LENGTH | WATTAGE (W) | CCT (¡K) | CLIPS | MOUNTING | CONTROLÊ |
Challenger CLS | 2Ê 2ft | 24Ê 24W/3,120lms | 3Ê 3000 | PCÊ Polycarbonate | SÊ Surface | MS Internal Motion Sensor |
4Ê 4ft | 30 30W/3,900lms | 4 4000 | ST Stainless Steel | SS Suspended | EM1Ê 8W Emergency | |
40Ê 40W/5,200lms | 5Ê 5000 | EM2Ê 25W EmergencyÊ | ||||
5Ê 5ft | 60Ê 60W/7,800lms | 6Ê 6000 | 0Ê None | |||
6Ê 6ft | 60Ê 60W/7,800lms | |||||
8Ê 8ft | 60Ê 60W/7,800lms | |||||
80Ê 80W/10,400lms | ||||||
100Ê 100W/13,000lms |
Ê
Features
Ê
- Injection moulded UV stablised vandal cover with high mechanical stress rating for challenging applications
- IP66 wet location listed withstanding dust and dirt environment
- Easy to install tool less access to lens and driver compartment
- -40¡F suitable for installation in cold storage areas
- Factory fitted emergency battery backup available
- Premium operating efficiacy of 130Lm/w
- DLC Premium qualified product
- Everyday illumination at the lowest possible price
- Easy to install tool less access to lens and driver compartment
- Quickfit bracket or optional suspension kit for simple installation
Ê
Specification
Ê
Volts: AC100-277V
Average Rated Life: L80/50,000hrs
CRI: RA80
Beam Angle: 120¡
Environment Location: IP66
Impact Rating: IK08
Ambient Temp: -40¡F to 122¡F
Emergency: 8W/90min
Average Rated Life: L80/50,000hrs
CRI: RA80
Beam Angle: 120¡
Environment Location: IP66
Impact Rating: IK08
Ambient Temp: -40¡F to 122¡F
Emergency: 8W/90min
Ê
Ê
Applications
Ê
- Parking Garages
- Industrial Facilities
- Retail Stores
- Garden Centers
- Food Services
- Airports
