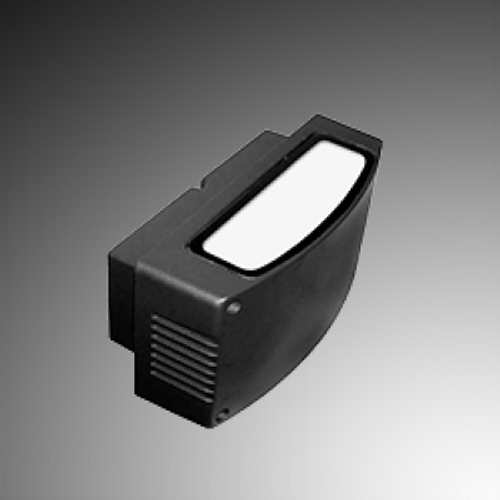

LED Slim Wall Sconce
LED Wall Mounts
USE OF PRODUCT
The intended use of this product is for wall wash luminaires and/or directional lighting for commercial, retail, or architectural applications.
HOUSING
Rugged die cast aluminum housing.
FINISH
Matt-finished, architectural bronze powdercoat over a precise chromate conversion coating. Available in standard dark polyester bronze or consult factory for made to order architectural finishes.
OPTICS
Anodized aluminum reflector with clear tempered glass lens for impact resistance. Fixture available in either up light, down light, or bi-directional configuration. Lens is sealed by a one- piece silicon gasket, which prohibits entrance of outside contaminants.
LED
High output LEDs offer a minimum estimated operating life of 50,000 hours in 3000K, 3500K, 4000K, or 5000K (standard) with CRI>83. LEDs placed on high performance aluminum heatsink for reduced junction temperatures and extended life.
DRIVER
Durable and long lasting LED driver operates at 120-277V and boasts a 90% power factor at 50 to 60 Hz with 0-10V Dimming Constant Current. Driver protections includes: Output open load, over-current and short-circuit, and over-temperature with auto recovery. -30¼C Min Temp. to 40¼C Max Temp. Step down transformer may be utilized for 480V or 347V applications.
MOUNTING
Luminaire mounts direct to wall. Run conduit to the fixture from J-Box
LISTINGS/COMPLIANCE
¥ CEC Compliant emergency driver
¥ CSA - Suitable for wet location.
¥ Meets Dark Sky Compliancy in down light configuration only.
