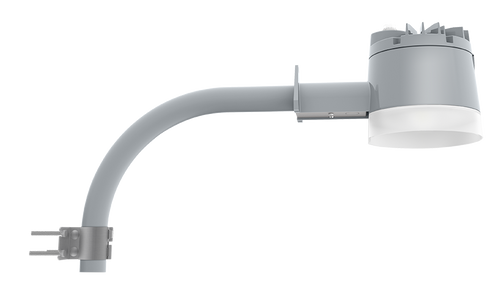

RAB Lighting YBLED YARDBLASTER 60/50/40W 5K/4K/3K PHOTOCELL GRAY

Description

Field Adjustability
Field Adjustable	Field Adjustable Light Output:60W/50W/40W (factory default 60W)Color temperature selectable by 5000K, 4000K and 3000K (factory default 4000K)
Compliance
UL Listed	Suitable for Wet Locations
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating	Ingress protection rating of IP65 for dust and water
Trade Agreements Act Compliant	This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed	This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: S-HL6IUZ
Electrical
Driver	Constant Current, Class P, 120V-277V, 50/60 Hz,60W: 120V: 0.50A, 208V: 0.29A, 240V: 0.25A, 277V: 0.22A50W: 120V: 0.42A, 208V: 0.24A, 240V: 0.21A, 277V: 0.18A40W: 120V: 0.33A, 208V: 0.19A, 240V: 0.17A, 277V: 0.14A
Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD	60W: 5.25% at 120V, 11.05% at 277V50W: 5.25% at 120V, 11.05% at 277V40W: 5.25% at 120V, 11.05% at 277V
Power Factor	60W: 99.6% at 120V, 94% at 277V50W: 99.5% at 120V, 94% at 277V40W: 99.3% at 120V, 94% at 277V
Photocell	120-277V Integrated dusk to dawn photocell
Surge Protection	L-N: 4kVL/N-PE: 6kV
Optical
BUG Rating	60W: B3 U3 G150W: B3 U2 G140W: B2 U2 G1
LED Characteristics
LEDs	Long-life, high-efficiency, surface-mount LEDs
Color Uniformity	RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan	100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency	60W: Replaces up to 250W Metal Halide (MH) or 200W High Pressure Sodium (HPS)50W: Replaces up to 200W Metal Halide (MH) or 150W High Pressure Sodium (HPS) 40W: Replaces up to 200W Metal Halide (MH) or 150W High Pressure Sodium (HPS)
Construction
Cold Weather Starting	The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature	Suitable for use in up to 40°C (104°F)
Housing	Precision die-cast aluminum housing and arm
Effective Projected Area	EPA = 0.27
Lens	Polycarbonate lens
Reflector	Polyethylene Terephthalate (PET)
Finish	Formulated for high durability and long-lasting color
Green Technology	Mercury and UV free. RoHS-compliant components.
Installation
Mounting	Mounts on wall or existing arm/pole YARM24 (1 5/8" diameter pipe)
