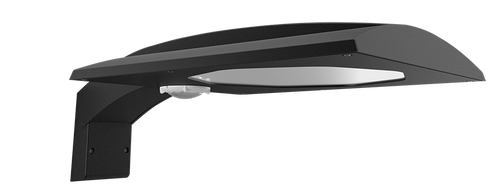

IVAT5S-75LPA750ZU/WS

RAB Lighting

(No reviews yet) Write a Review
SKU:
IVAT5S-75LPA750ZU/WS
Availability:
Usually ships within 1 week.
Weight:
14.40 LBS
voltage:
277v
Kelvin:
5000K
Spec Sheet:
Spec Sheet
Instructions:
Instructions
Watts:
67W
Color Temp:
5000K (Cool)
Lumens:
8,434 lm
Efficacy:
128.8 lm/W
Color Accuracy:
74 CRI
L70:
100,000 Hours
Type:
Constant Current
V120:
0.58A
V208:
0.34A
V240:
0.29A
V277:
0.25A
Input Watts:
65.5W
voltage:
277v
Kelvin:
5000K
Spec Sheet:
Spec Sheet
Instructions:
Instructions
Watts:
67W
Color Temp:
5000K (Cool)
Lumens:
8,434 lm
Efficacy:
128.8 lm/W
Color Accuracy:
74 CRI
L70:
100,000 Hours
Type:
Constant Current
V120:
0.58A
V208:
0.34A
V240:
0.29A
V277:
0.25A
Input Watts:
65.5W
Call for price
Compliance
UL ListedSuitable for wet locations
IESNA LM-79 & LM-80 TestingRAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80
IP RatingIngress protection rating of IP66 for dust and water
California Title 24Can be used to conform with the requirements of California Title 24 Part 6.
DLC ListedThis product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: S-DQOGMC
Electrical
DriverClass 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional
Dimming DriverDriver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD12.33% at 120V, 13.1% at 277V
Power Factor98.8% at 120V, 93.3% at 277V
Performance
Lifespan100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDsLong-life, high-efficacy, surface-mount LEDs
Color StabilityLED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color UniformityRAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather StartingThe minimum starting temperature is -40°C (-40°F)
Maximum Ambient TemperatureSuitable for use in up to 40°C (104°F)
HousingPrecision die-cast aluminum
IES ClassificationType VS distributes light in a square symmetrical pattern and is meant for large, commercial parking lot lighting as well as areas where sufficient, evenly distributed light is necessary
LensDiffused Polymethyl Methacrylate (PMMA)
Effective Projected AreaEPA = 0.61
FinishFormulated for high durability and long-lasting color
Green TechnologyMercury and UV free. RoHS-compliant components.
Sensor Settings
Multi Level Motion Sensor*48 ft diameter maximum coverage from 8 ft height.
Handheld Wireless Configuration ToolAdjust settings using handheld wireless configuration tool (catalog# WSREM). Only available with 0-10V dimming driver options. Handheld wireless configuration tool available here.
Installation
MountingUniversal pole adapter
